ABOUT VANYAR

ELVES VANYAR

Vanyar Is the Lightest Frame That We’ve Ever Made; It Is Born to Race and Is a Real Pro-Level Race-Bike! Meanwhile, Vanyar Is a Traditional and Classic Road Frame for Climbing, We Know the Lightest Bike Can Bring a Beautiful Climb, Of Course, Perfect Compliance and Stiffness Is Also Very Important, How to Balance Them Is Very Important! Elves Engineers Know It’s Not Enough to Organize T800 Carbon Fiber and T1000 Carbon Fiber to Build It, And They Bring Professional Geometry to Ensure Deliver Perfect Steering and Optimal Power Transfer When Climbing, The Geometry Is the Foundation to An Awesome Ride, And the Important Area Has Been Strengthened by T1000 Carbon Fiber, And Different Layup Schedules Ensure It’s Not Only Lighter, And Stiffer.

About Vanyar Frame Molding, You Know Our Elves Vanyar Made by One Piece Molding (OPM) Technology—The Entire Vanyar Frame Include the Front Triangle and Rear Triangle is Monocoque Molded as A Single Piece! Not All Carbon Frame Made by OPM Technology! Most Carbon Frame on The Market Made by Three Pieces—They Need Be Joined the Front Triangle with Seat Stay and Chain Stay! The OPM Technology Only Used in High-End Carbon Bike Frame.

OPM Technology and Strategic Use of T1000 Toray® Carbon Fiber Ensures Vanyar Lighter, Higher Stiffness and Offering the Ideal Blend of Light Overall Weight and Targeted Stiffness!

Actually, Vanyar Has a Professional Geometry Design and Is Unsuited for A Beginner, It Is a Pro-Level Race Bike and Designed for Racing. Vanyar’s Professional Geometry Will Typically Give You More Edgy Handling for a Ride That’s More Responsive, The Ride Position Will be Longer and Lower, Flattening Your Back and Giving You More of a Bend at Your Seat. That Lowers Your Frontal Profile for Less Wind Resistance, Lowers Your Center of Gravity, And Weights the Front Wheel More to Add Traction, which will be good for Acceleration and Climbing.

Elves Vanyar Frame Has Been Approved by UCI Since 28.05.2021, All of Vanyar Rim Brake Frames Come with UCI Stickers On Frame and Fork from Then. The Vanyar Frame UCI CODE: ELV-VAN-RD. What Does the UCI Sticker Mean Then? It Simply Means That Someone at The Organization Has Ensured a New Bike Meets All the Necessary Technical Rules. Once The Approval Has Been Granted, The Elves Can Apply a Sticker to Vanyar Frame and Vanyar Is Then Listed on The UCI’s Database of Approved Frames. Meanwhile, The UCI Approved Means Elves Vanyar Bike Can Be Raced in Events Overseen by the UCI.

ELVES Vanyar Bike Are Appearing More And More at The Bike Racing Events. We Are Confidence for Its Quality and Geometry, It’s A Real Pro-Level Road Frame, And It’s Unbeatable Whether You Are Sprinting for The Podium or Alone Against the Clock!
Technical

Details.

FRAME

ELVES VANYAR 2022

FULL-CARBON(TOARY T800 & T1000 CABON FIBER)

GEOMETRY:PRO

SEAT CLAMP:INTEGRATED

WEIGHT: 750g(SIZE 46,UNPAINTED FRAME WITHOUT METAL PARTS)

BRAKE:CALIPER BRAKE(C BRAKE)

BOTTOM BRACKET:PRESS FIT BB86

BOTTOM SHELL WIDTH:86.5mm

BOTTOM SHELL ID:41mm

ELECTRIC DRIVETRAIN: Di2&E-TAP COMPATIBLE

OPM(ONE PIECE MOLDING) TECHNOLOGY

INTEGRATED CABLE ROUTING

MAX TYRE SIZE: 700CX25C

CERTIFICATION:BOTH EN 14766 AND ISO 4210-6:2014

FRAME SIZE: 46/48/50/52/54/56

SEATPOST

ELVES SP02 SEATPOST
LENGTH:350mm
WEIGHT:165g
TWO BOLT PIVOT PRECISE ADJUSTMENT
DIAMETER: 27.2mm
OFFSET:0mm AND 25mm SEATPOST AVAILABLE
SEATPOST:FULL-CARBON

FORK

ELVES VANYAR FORK
FORK:FULL-CARBON FORK
WEIGHT: 365g
OFFSET: 45mm
BRAKE:CALIPER BRAKE(C BRAKE)
STEER TUBE LENGTH: 300mm

COLORS

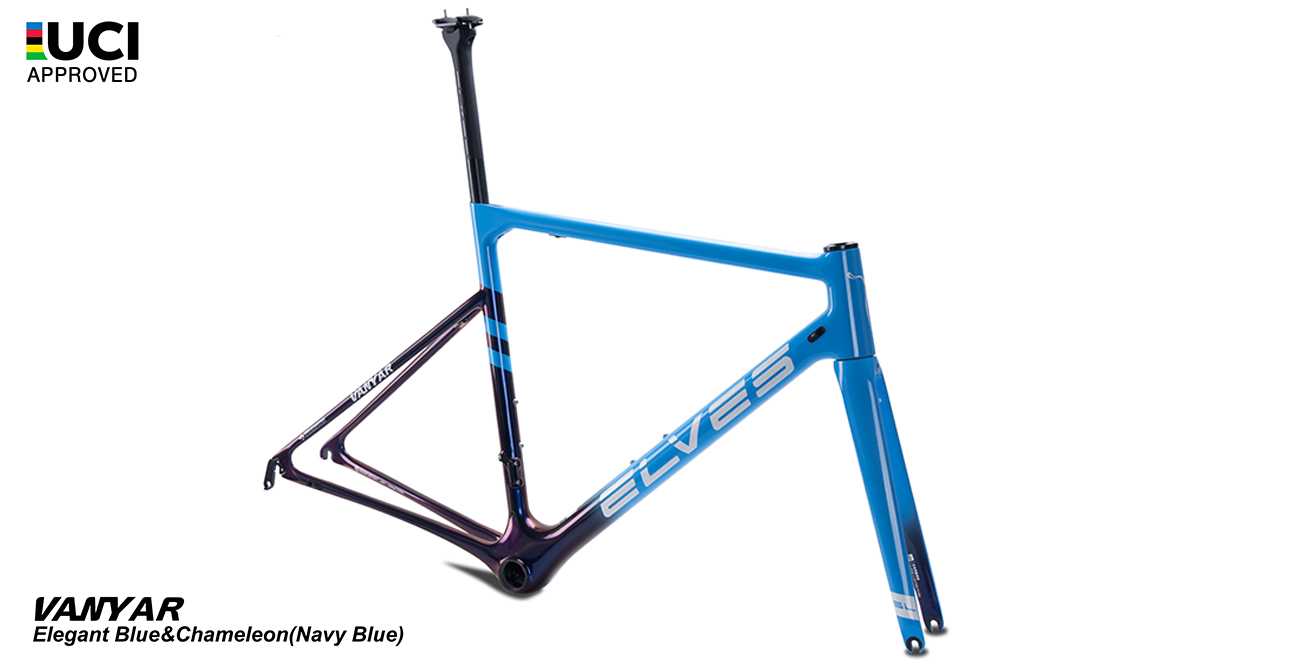

ELEGANT BLUE&NAVY-BLUE CHAMELEON

GRAY&BLACK

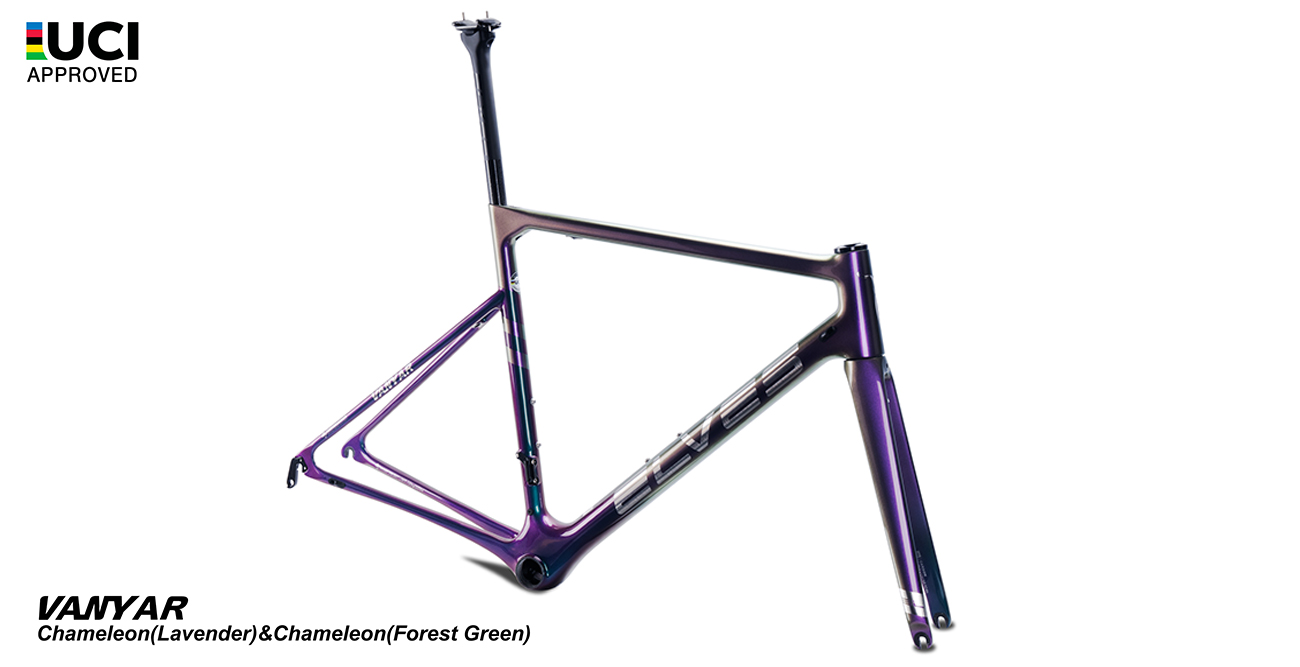

LAVENDER CHAMELEON&CHAMELEON(FOREST-GREEN)

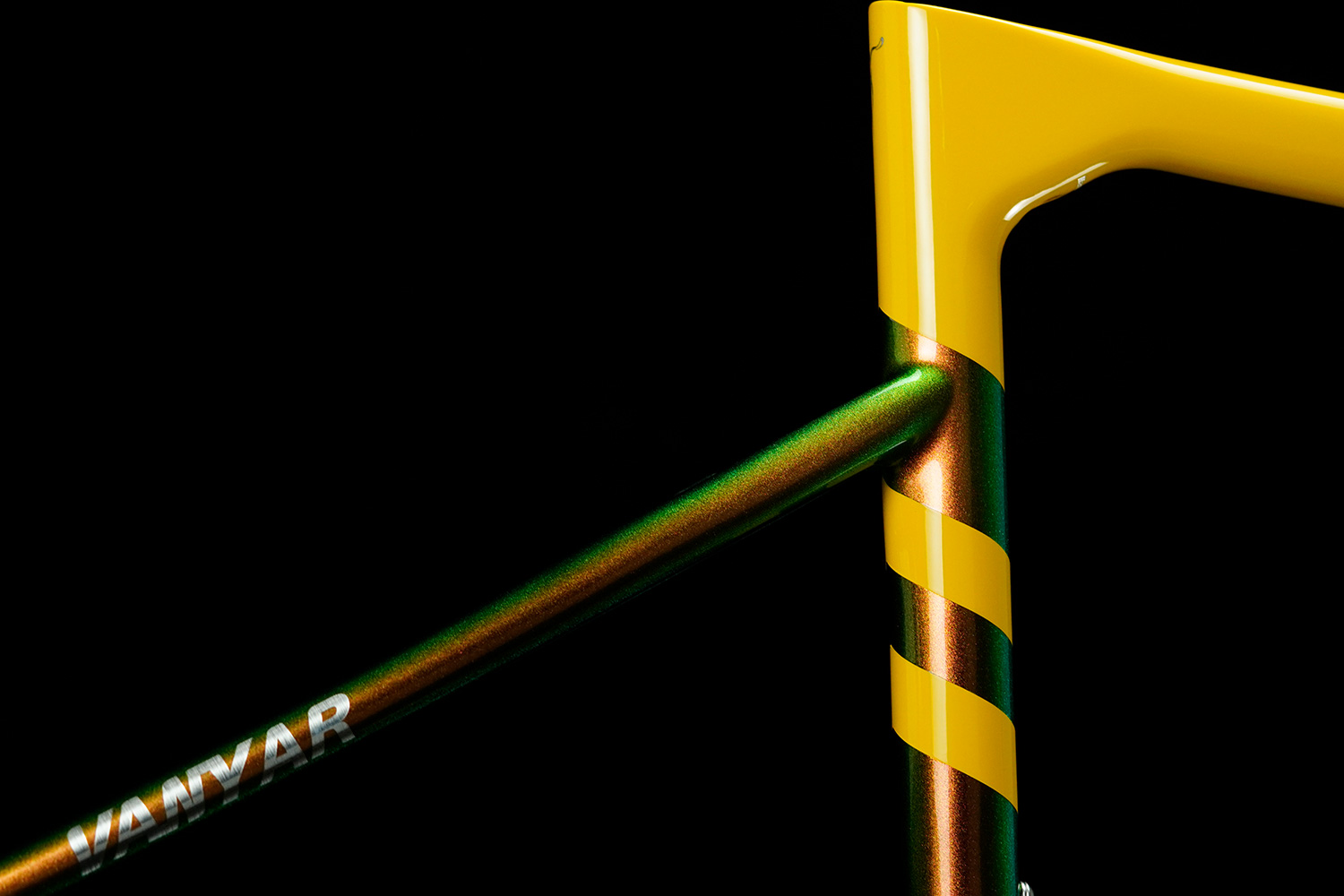

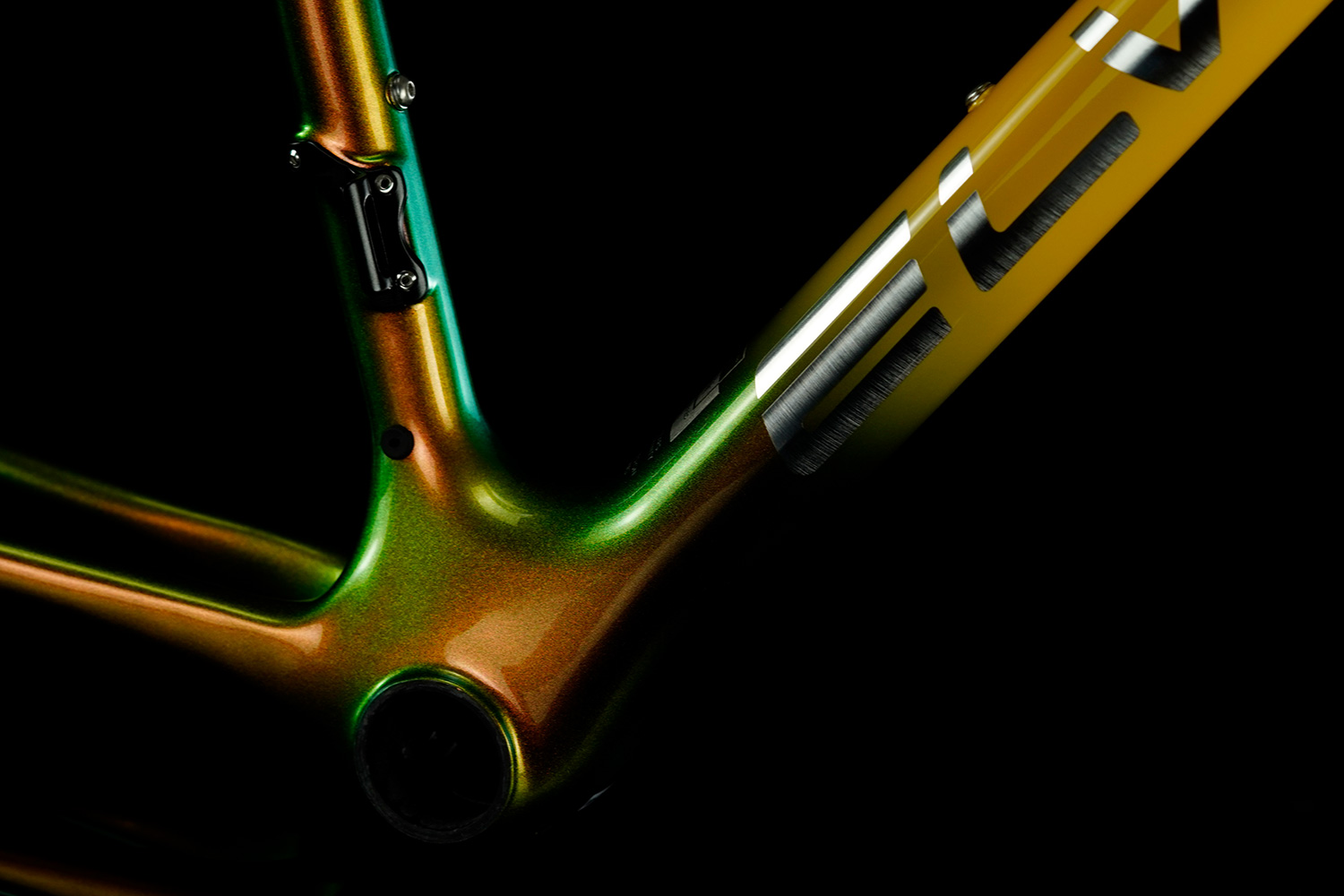

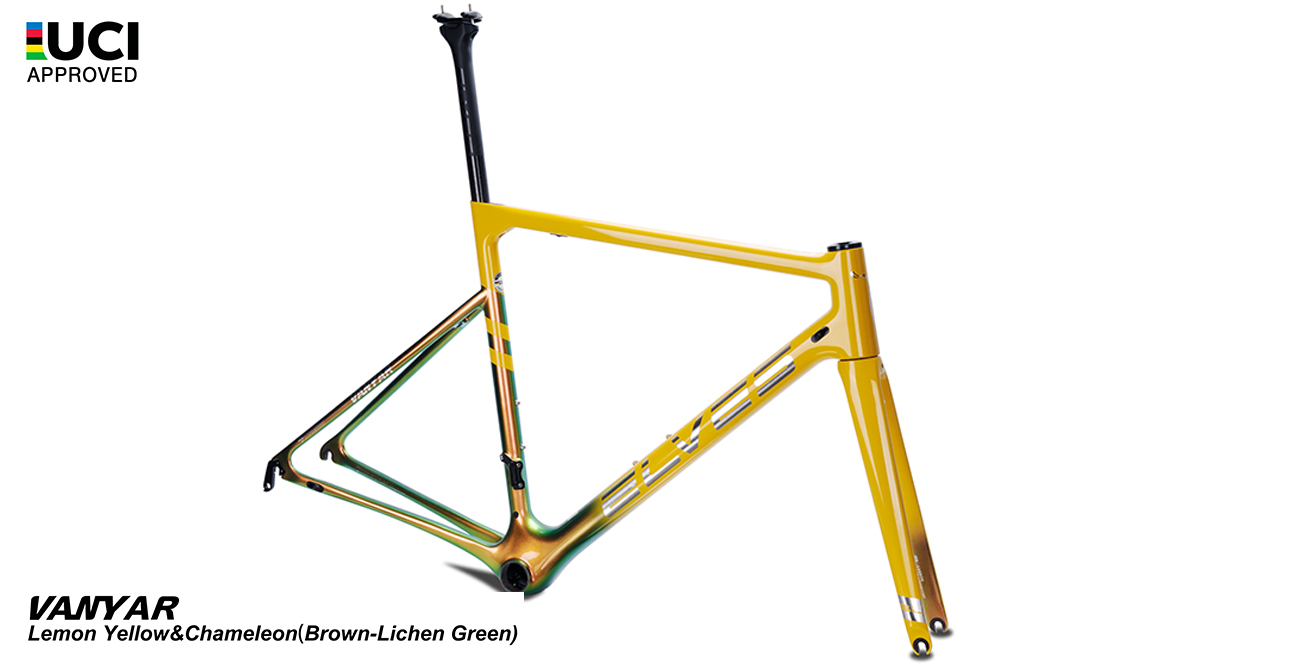

LEMON-YELLOW&CHAMELEON(BROWN-LICHEN-GREEN)

MATT-BLACK&GLOSSY-BLACK

RED&CHAMELEON(BLACK-RED)

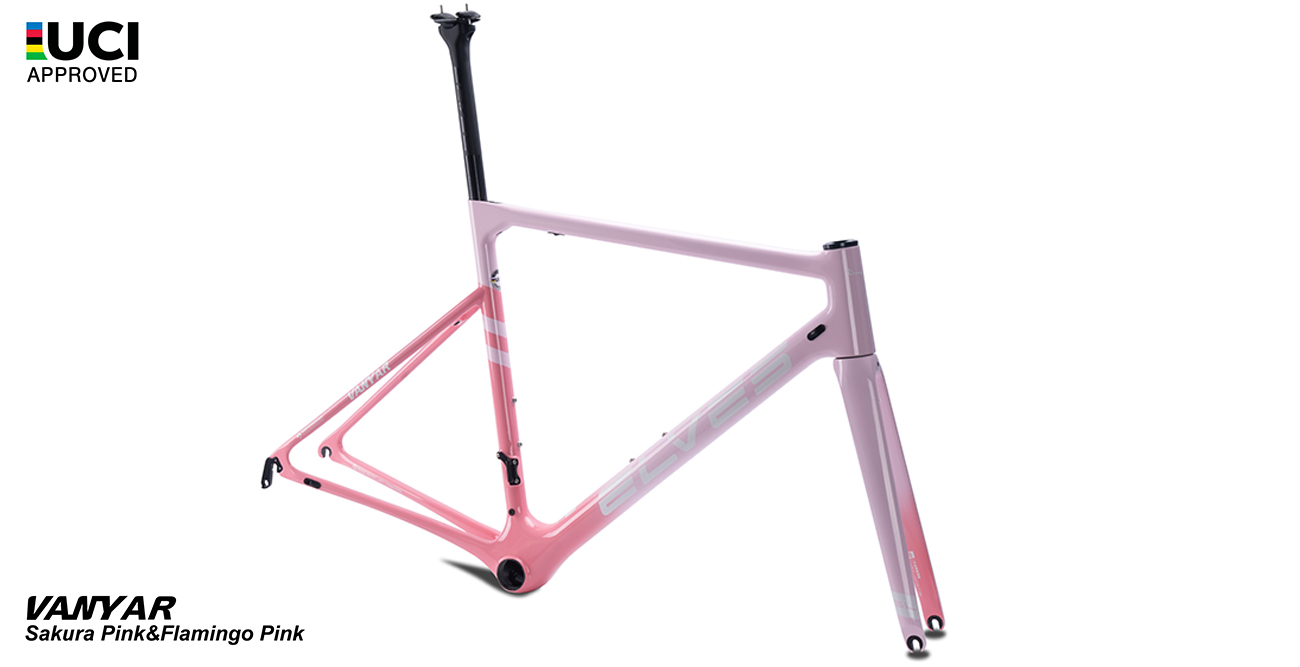

SAKURA-PINK&FLAMINGO-PINK

WHITE&NEBULA-CHAMELEON



TORQUE VALUES

RECOMMENDED TORQUE VALUES

SADDLE RAIL BOLTS:12Nm

INTEGRATED SEATCLAMP:10-12Nm

STEM (STEERER):6Nm

STEM (HANDLEBAR):6Nm

FRONT DERAILLEUR HANGER:3Nm

REAR DERAILLEUR HANGER:2.5Nm

WATER BOTTLE CAGE BOLTS:3Nm



ACCESSORIES

PRESS FIT BB86(CERAMIC BEARINGS)

INTEGRATED HEADSET FOR TAPERED 1 1/2" - 1 1/8" STEERER

HEADSET BEARING SPEC: UPPER(42mmX6.5mmX45°)/LOWER(52mmX7mmX45°)

SPARE REAR DERAILLEUR HANGER X1


Select the size to see all the frame specifications and find one that fits you.

AVAILABLE SIZES

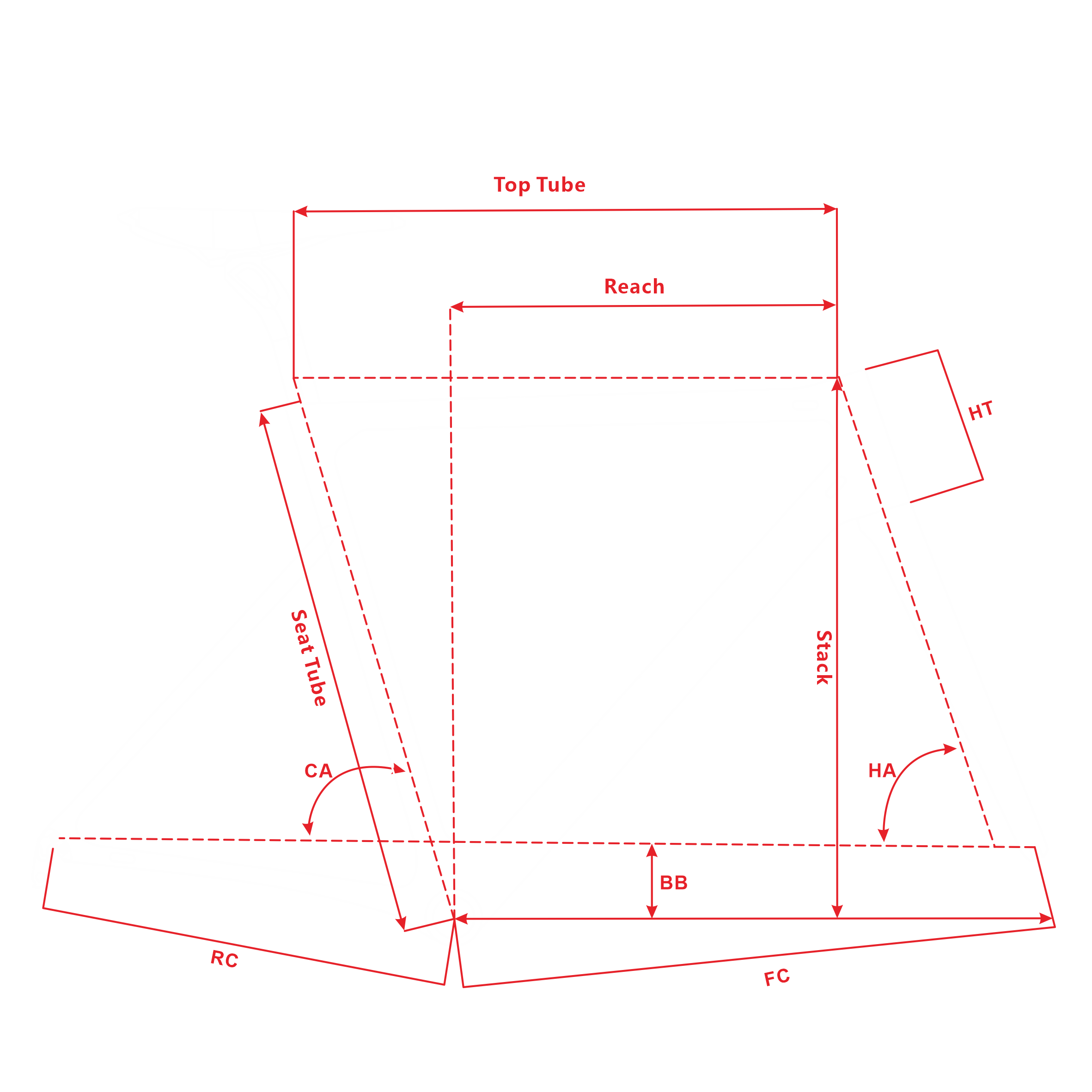

Vanyar Geometry
