ABOUT FALATH PRO

ELVES FALATH PRO

Undoubtedly, Falath Frame Is One of The Best-Selling Frames in Elves Family, Not Only the Perfect Aero Form, But One That Also Has a Higher Stiffness and A Balanced Geometry.

Our Engineer Built the Falath Frame Use of T800 Carbon Fiber and T1000 Carbon Fiber in Some Important Areas Like the Head Tube and Bottom Bracket to Increase the Overall Stiffness, And the Scientific Layup Schedules Ensure Every Tube and Every Trailing Edge Have Perfect Lightweight and Stiff.

Aero Form Framesets Advanced Drag Reduction Features Minimize Drag for Less Effort and More Speed. Super-Stiff and Lightning Fast They Offer a True Performance Advantage for That Solo Breakaway or Chaotic Final Sprint.

Falath Is Selected by Some International Teams So We Can Get Many Professional Rider Suggestions Constantly and Enabled Us to Implement a Performance Road Geometry and A Perfect Control! Based On Their Suggestion We Have Modified The Falath Moulding To Get A New Perfect Aero Frame—2022 Falath Pro! More Perfect Aero Form and We Modified the Headtube Structure to Get Full Integrated Cable Routing.

Elves Has Always Been Synonymous With Fabulous Frame Finishes,And The Trend Will Continue On Falath Pro Frame, Falath Pro Will Be Available In Five Colors! All Of Them Look Great and Beautiful! Elves Products Has Been Sold All Over the World, We Have to Prepare More Fun Colorway for Different Customers. Want More Colorway Options? Elves Can Offer Custom Paint Service for Our Riders. Additionally, The All-Black Colorway Is Always the Lightest One and It Shaved About 110g Over Another Colorway.

Aero Road Bikes Are The Fastest Option Out There In The Majority Of Circumstances And You Don’T Have To Be A Pro To Benefit, Especially If You’Re A Rider Who Places A Lot Of Significance On Riding Fast. After All, For A Lot of People, Riding Fast Is Fun. If That’s You, Then We Think Falath Pro Frame Must Be the Best Collections to You.
Technical

Details

FRAME

FRAME:FULL-CARBON(TOARY T800 + T1000 CABON FIBER)

GEOMETRY:PRO

SEAT CLAMP:INTERATED

WEIGHT: 1160g(SIZE 46)

HEADSET:1-1/2” LOWER,1-1/2” UPPER

BRAKE:DIRECT MOUNT TYPE

BOTTOM BRACKET:BB86

ELECTRIC DRIVETRAIN:DI2&E-TAP COMPATIBLE

EPS MOLDING TECHNOLOGY

MAX TYRE SIZE: 700CX28C

INTEGRATED CABLE ROUTING

SEAT POST

LENGTH:350mm
WEIGHT:258g
SINGLE BOLT PIVOT PRECISE ADJUSTMENT

SEATPOST:FULL-CARBON

SADDLE CLAMP: 7X7mm SADDLE RAIL CLAMP (7X10mm CLAMP FOR CARBON RAIL INCLUDED)


FORK

FORK:FFULL-CARBON FORK
WEIGHT:398g
OFFSET:45mm
BRAKE:DIRECT MOUNT TYPE
STEER TUBE LENGTH:300mm

COLORS

BABY ORGANGE&MATT CANAL BLUE

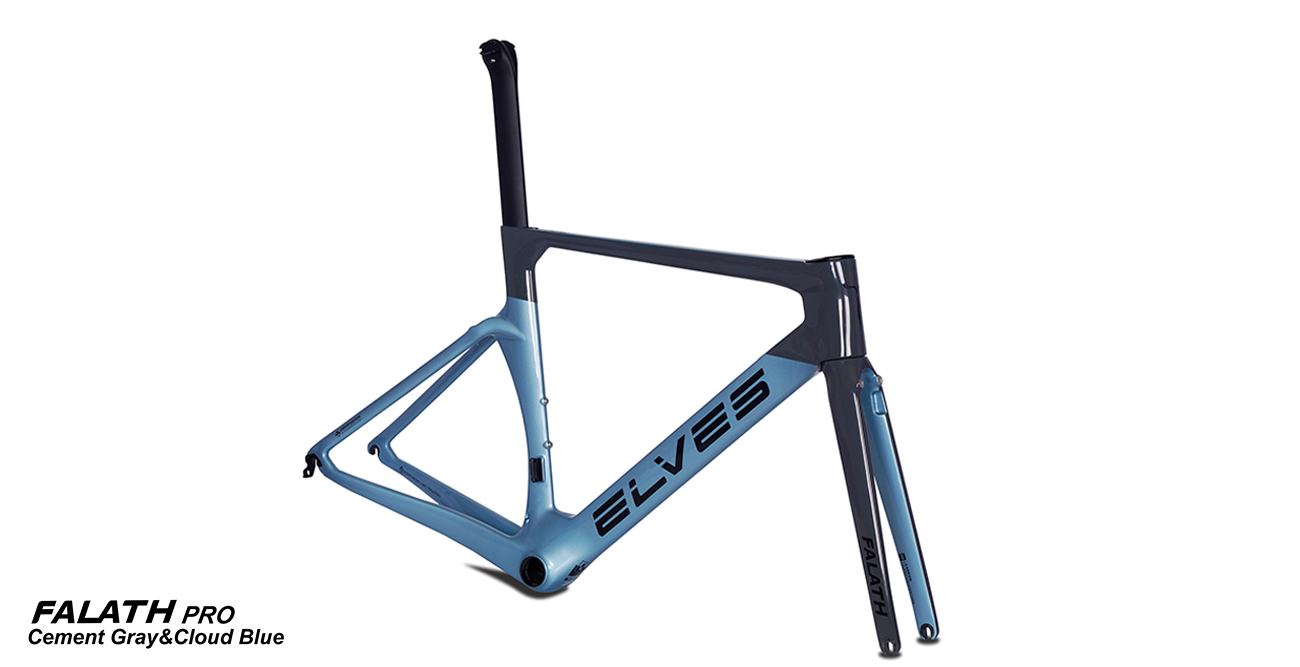

CEMENT GRAY&CLOUD BLUE

GLOSSY SILVER&MATT BLACK

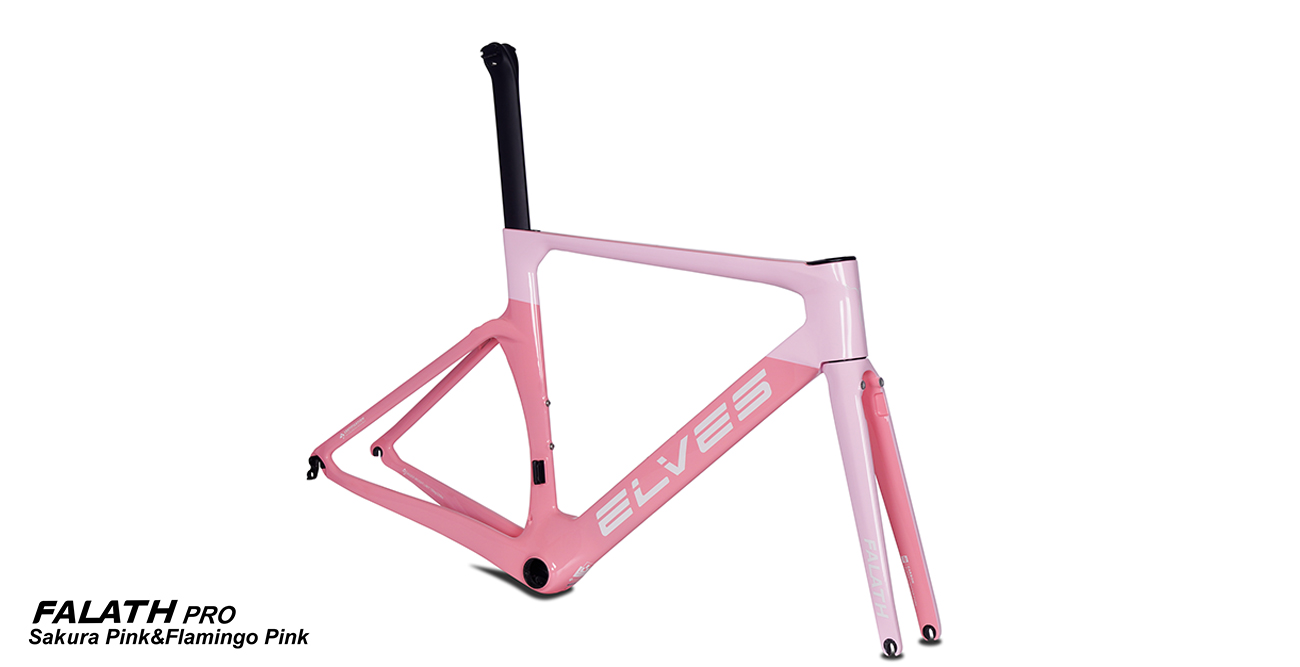

SAKURA PINK&FLAMINGO PINK

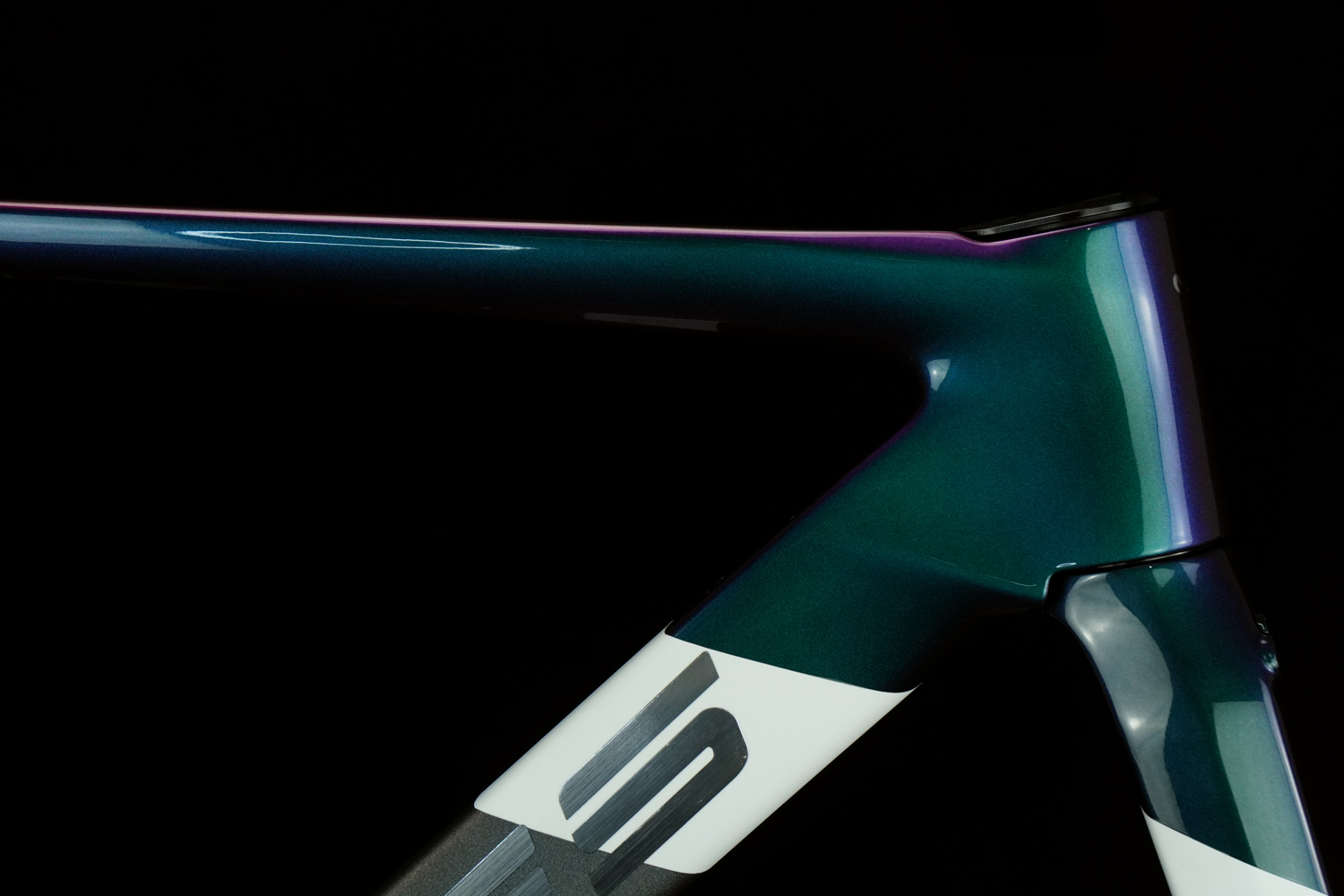

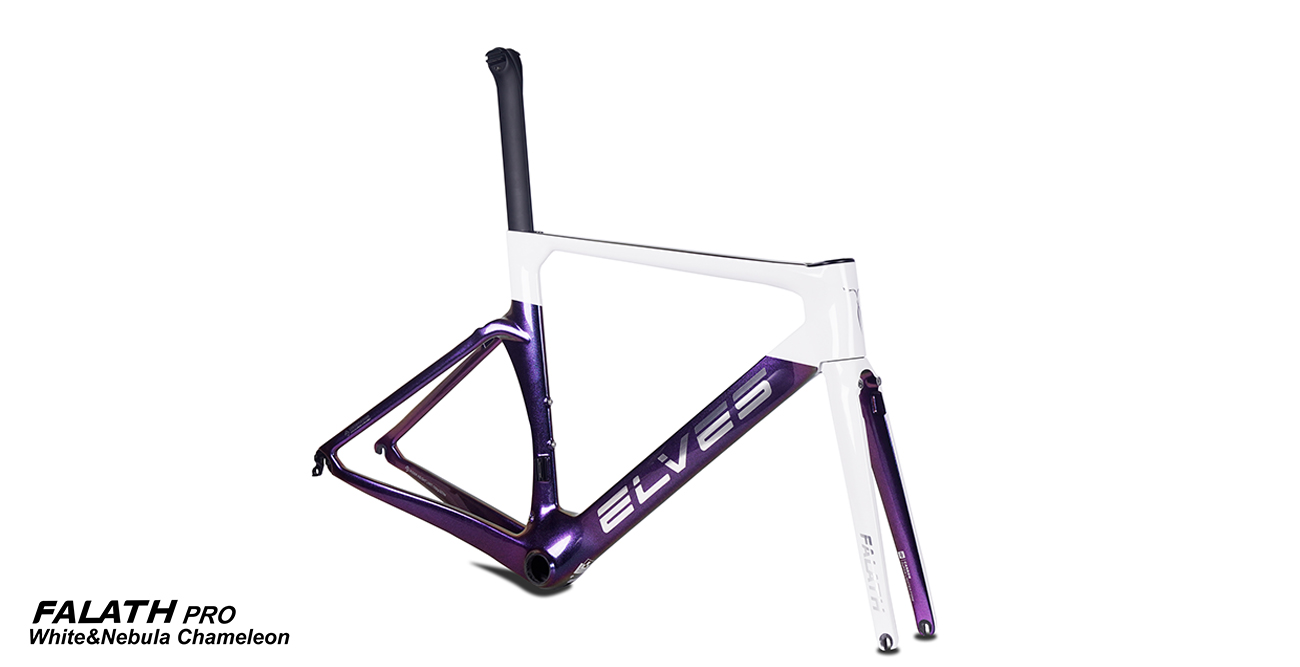

WHITE&NEBULA CHAMELEON

ACCESSORIES

BB86,CERAMIC BEARINGS BB
ELVES HEADSET
REAR DERAILLEUR HANGER X2

CERTIFICATION

BOTH EN 14766 AND ISO 4210-6:2014

TORQUE VALUES

RECOMMENDED TORQUE VALUES

SADDLE RAIL BOLTS:12Nm

INTEGRATED SEATCLAMP:10-12Nm

STEM (STEERER):6Nm

STEM (HANDLEBAR):6Nm

FRONT DERAILLEUR HANGER:3Nm

REAR DERAILLEUR HANGER:2.5Nm

WATER BOTTLE CAGE BOLTS:3Nm

HEADSET INSTALL

Select the size to see all the frame specifications and find one that fits you.

AVAILABLE SIZES

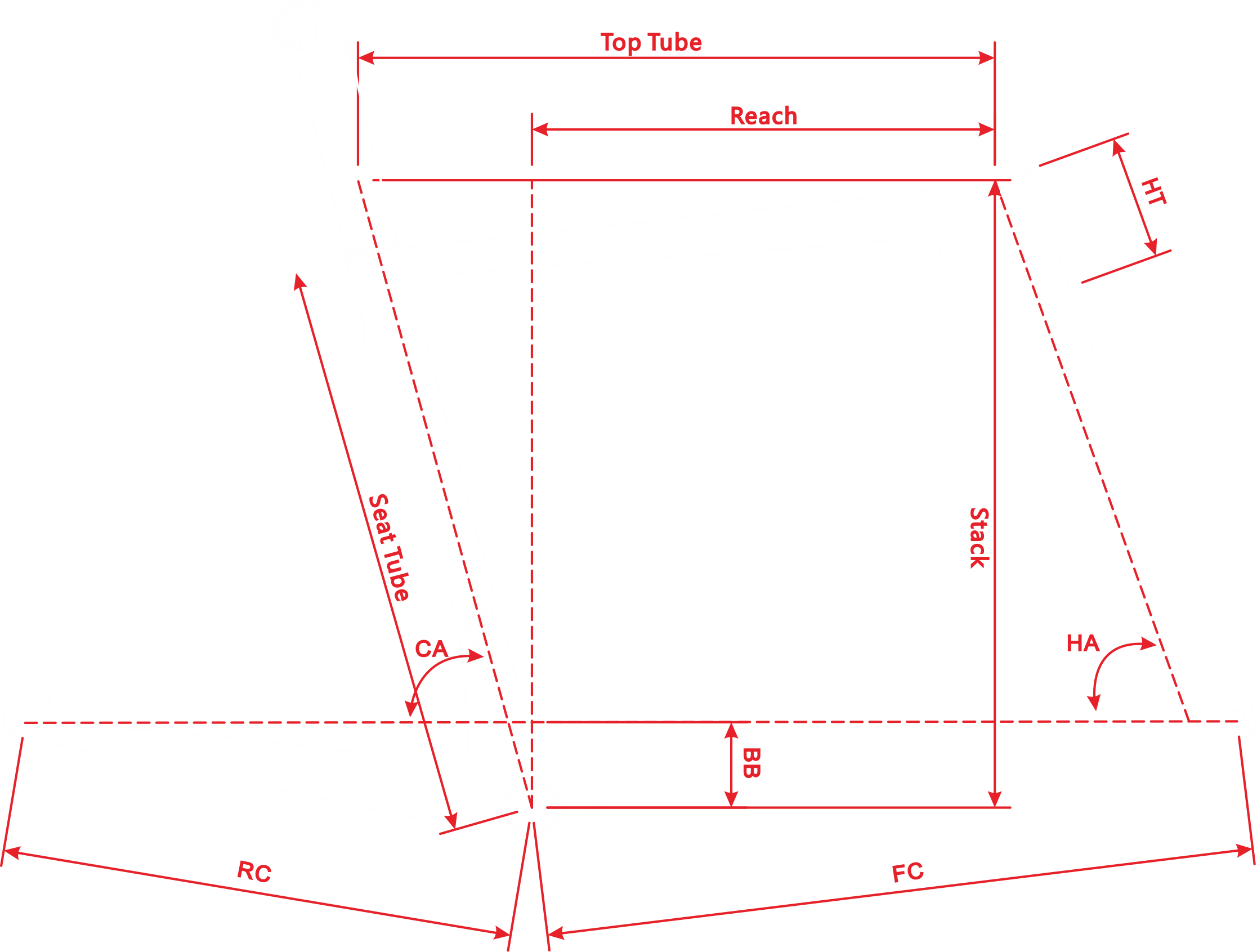

Falath Pro Geometry
