OROME VALAR TH30&TH30D

ABOUT OROEM VALAR TH30 AND TH30D

TH30&TH30D

New To Our Line Up Are the Valar TH Series Wheels Offering an Optimal Balance of Aerodynamic Performance and Lightweight. New & Enhanced Features Include:
• Star Ratchet Hubs with TPI Ceramic Bearings for Rapid Engagement and Low Rolling Resistance
• 24K Carbon Fiber Optimized to Ensure a Robust Strength & Durability While Maintaining a Lower Weight.
• Use Of Thinner Prepregs for Better Control Over the Lay-Up Offering Consistent Wall Thickness
• 22mm Internal Width to Accommodate Wider Tires and Improved Aerodynamic Profile
• Ultra-Light Wheels Approaching 1300gram Weight Per Pair.

This Results in Faster Acceleration, Better Power Transfer Along and Superior Braking Control. These Attributes Makes the TH Series Wheels Perfect for Climbing and Long Rides Where Power Delivery and Comfort Are Crucial. Valar TH Series Wheels Are Second to None in Terms of Value, Reliability, Weight and Efficiency.

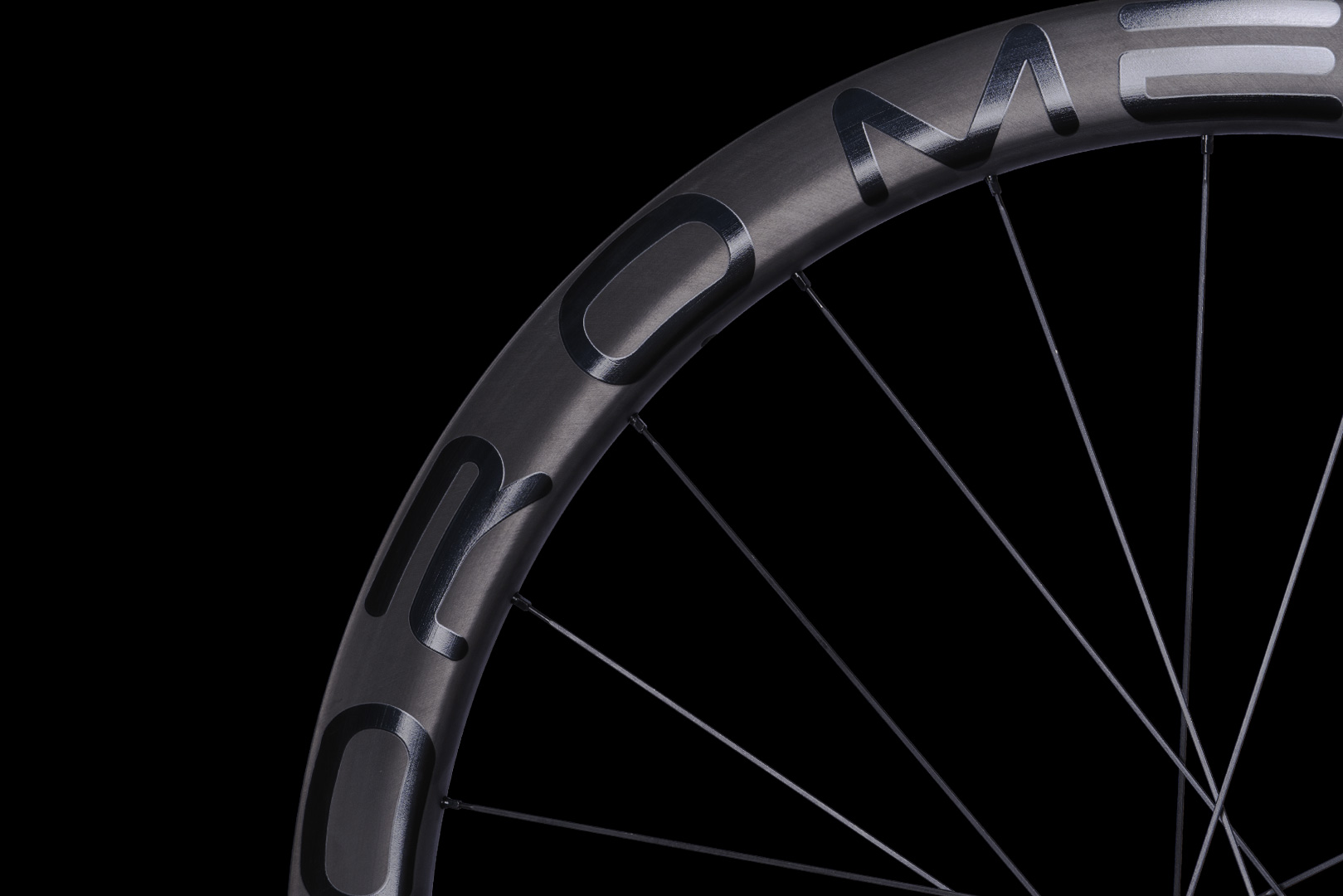

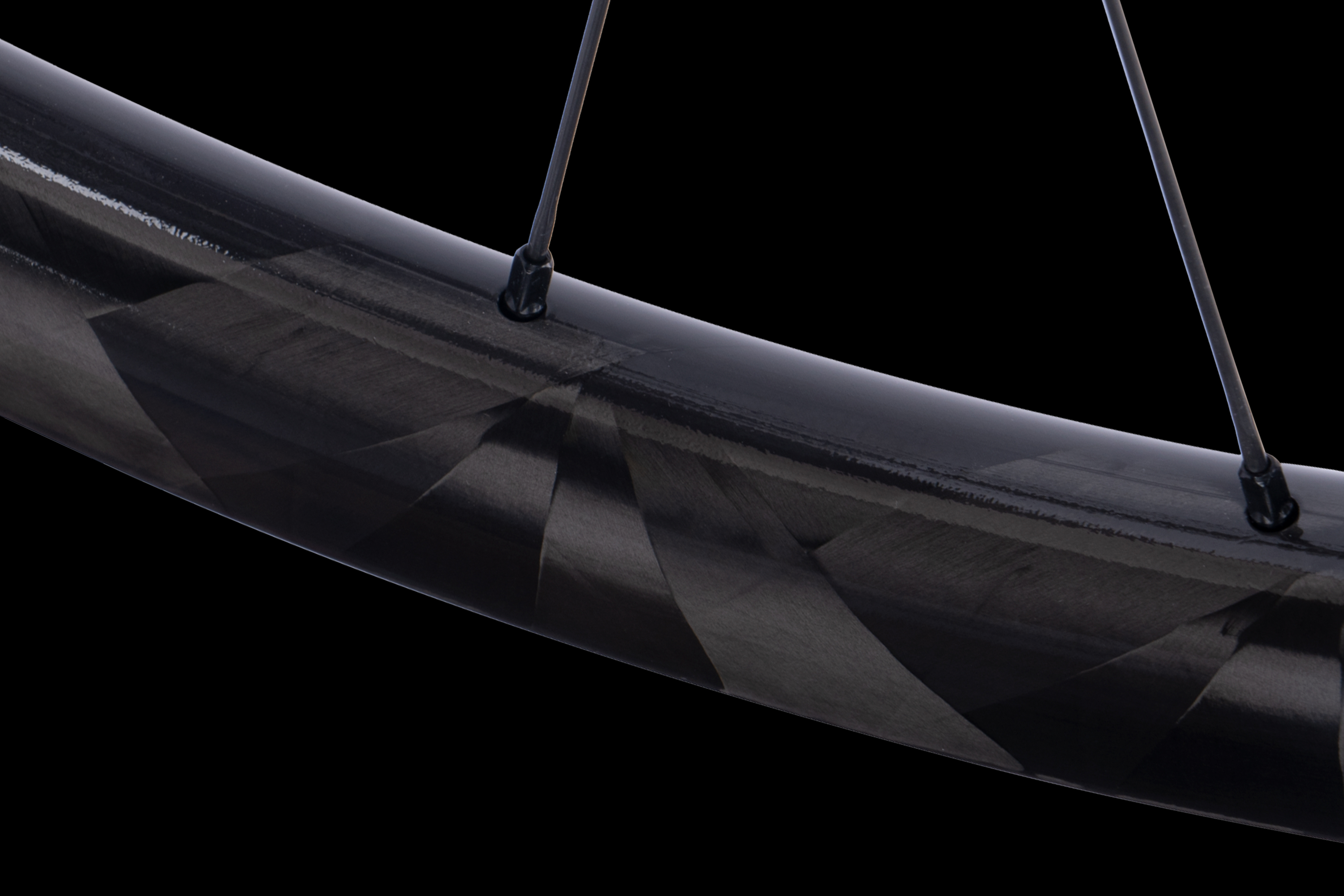

Valar TH Series Wheels and Valar DT Series Use the Same Carbon Rims, And the Same Carbon Layup Design, But the DT Series Rims Surface Has a Marbled Carbon Fiber Finish. TH Series Rims Are Constructed With 24k Carbon Fiber. Both Designs Are Ultra-Light Rims Designed with High Tensile Strength Carbon Fiber at The Most Crucial Points to Improve Rim Stiffness. We Use Thinner Prepregs for Better Control Over the Lay-Up Which in Turn Offers a Consistent Rim Wall Thickness with More Layers. These Elements Produce a Lighter Weight with Improved Stiffness Over the Competition. Zero-Coating Design on Our Carbon Rim Surfaces Is Another Feature That We Offer on Our Rims. Accessible To A Select Few Manufacturers on The Market, This Complex Technology Reveals the Fine Fiber Structure of The Carbon Rim Giving Each Wheel an Individual Touch and Reduced Weight. This Technology Saves About 15g Per Rim, Consisting of A Clear Coating On 25% Of the Surface, While the Rest of Area Remains Unfinished as It Came Out of The Mold. Unquestionably It’s a Trend on High-End Carbon Products! We Think That a Valar TH Series Rim Made by Zero-Coating Technology On 24K Carbon Fiber Surface Is Stunning and Unique.

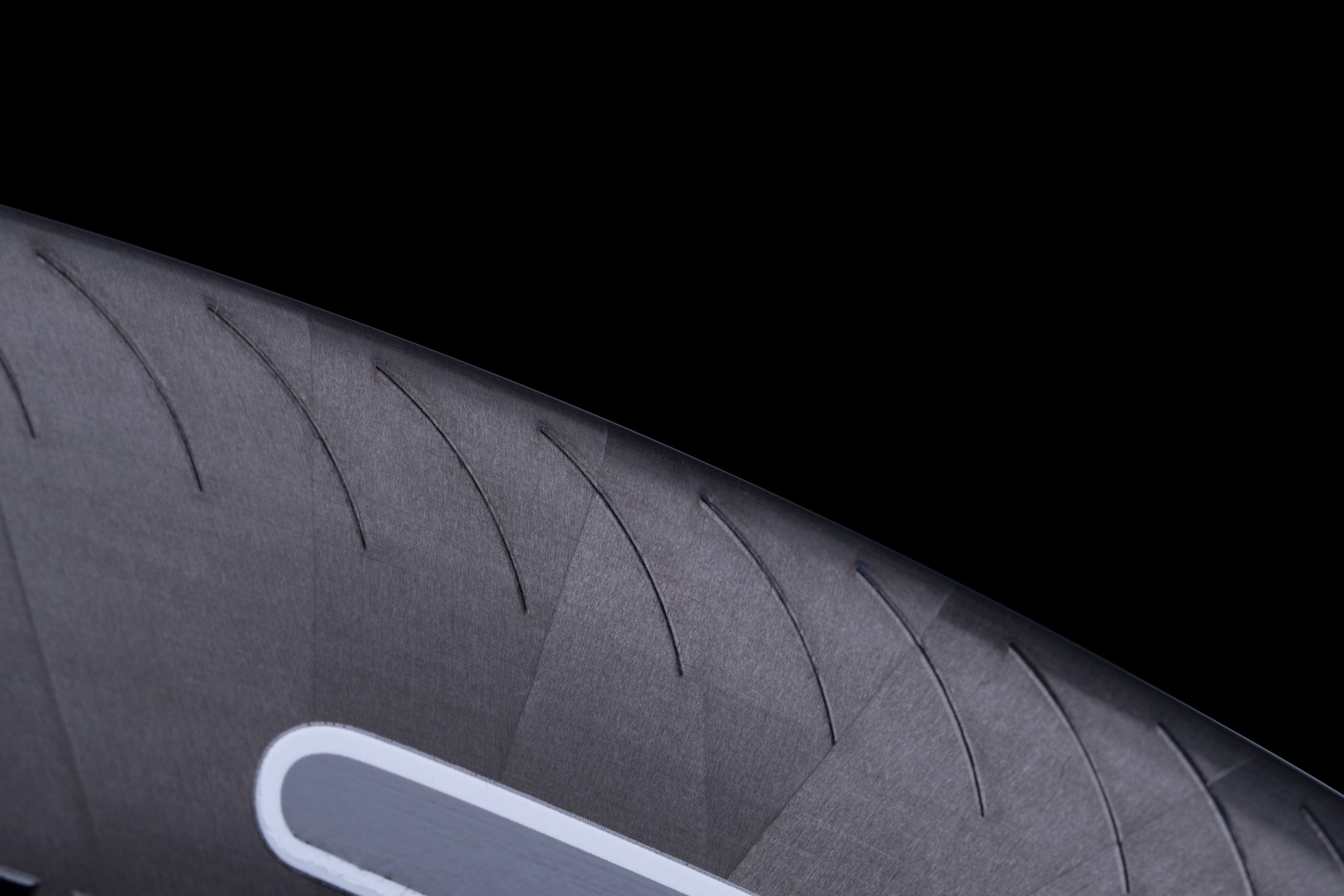

All OROME Valar Rim Brake Wheels Include a Grooved Brake Surface Technology and Our Proprietary High-Temperature Resistant Resin System. These Features Enhance the Rim’s Overall Durability and Braking Performance! The Grooved Brake Track Helps Move Water & Debris Quickly Away from Between the Brake Pads & Rim Improving Pad Life, And Braking Efficiency. The High-Temperature Resistant Resin System and Grooved Braking Track Dissipates Heat Build-Up Away from The Pads and Can Withstand Temperatures Exceeding 280°C (536 F). The Additional Grooved Surface Adds Friction Resulting in Better Braking Performance.

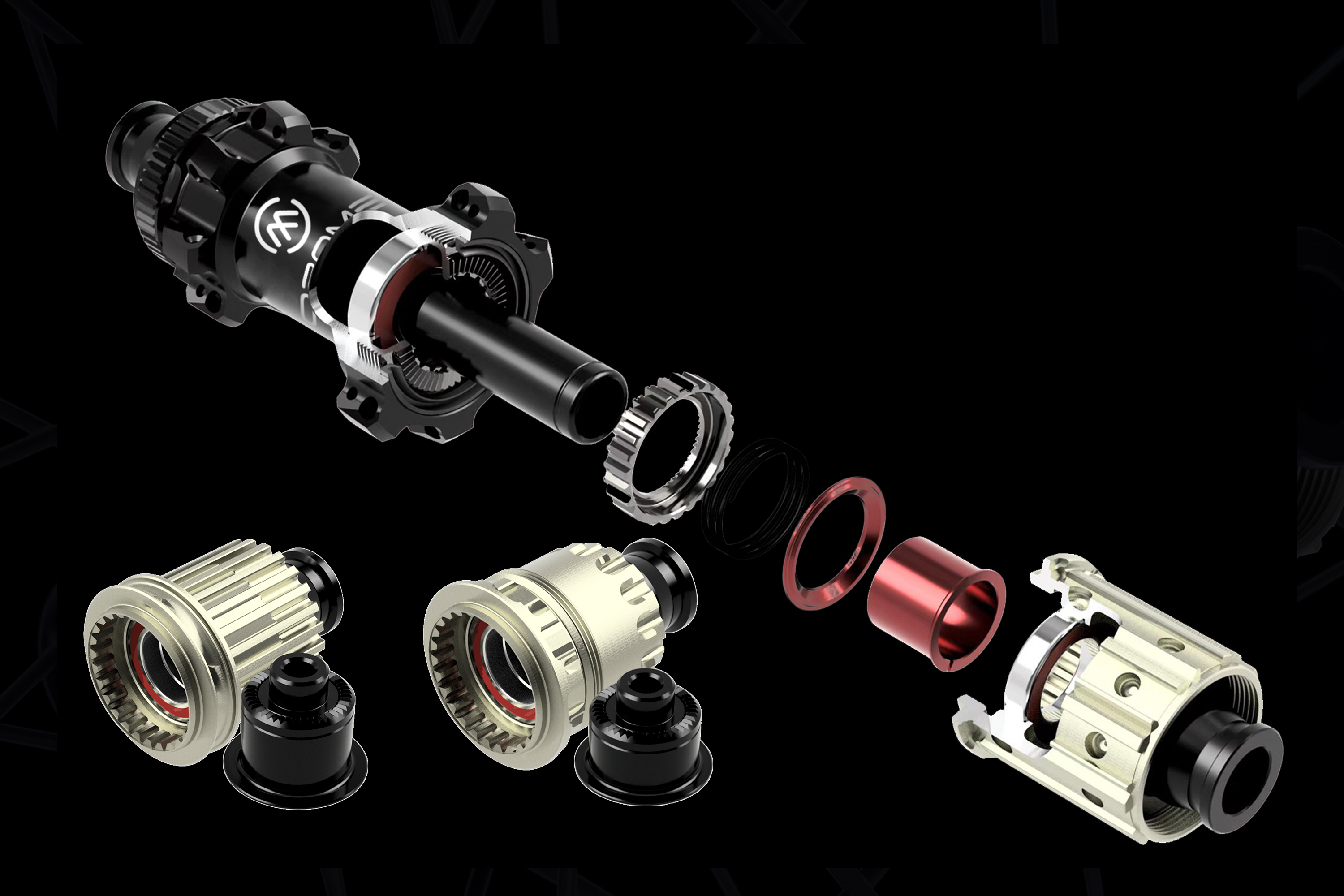

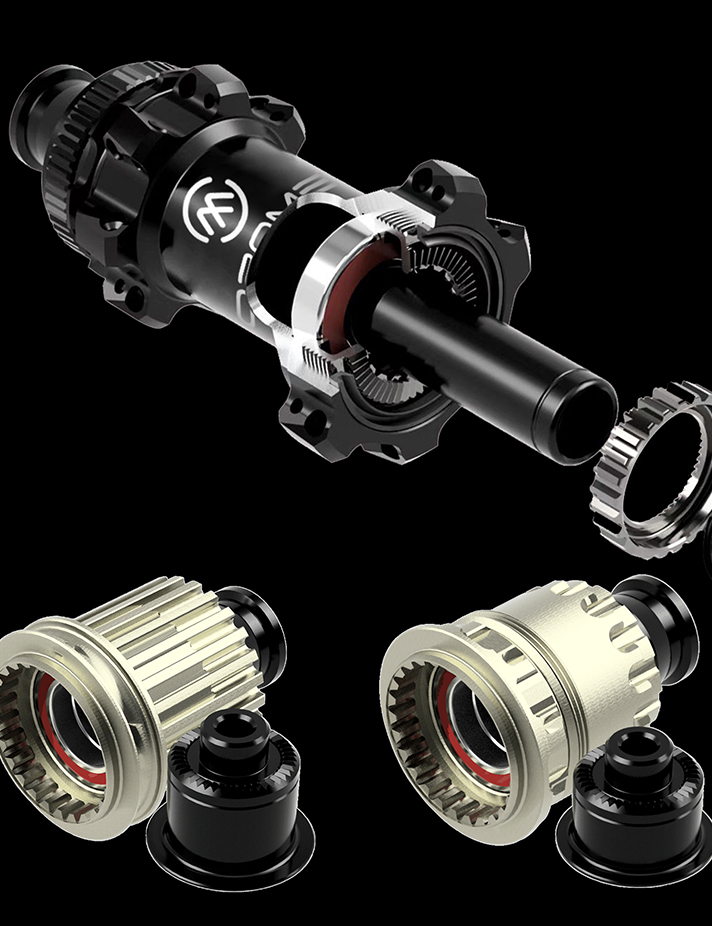

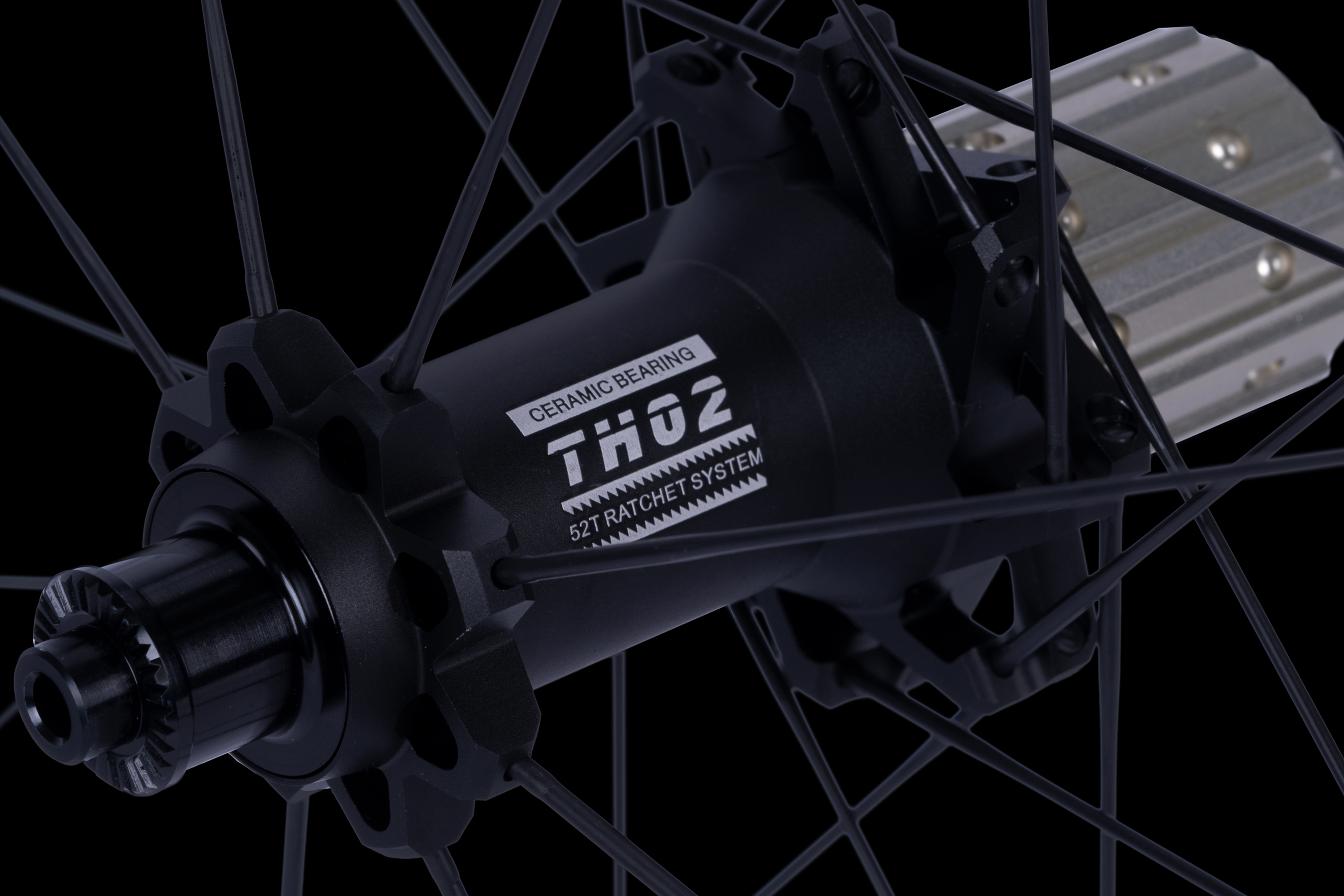

VALAR TH Series Wheelset Is Assembled with A Custom CNC Hub With Ceramic Bearings. The Hub Driver System Is Equal to DT Swiss Star Ratchet System. The TH Hub Internal Technology Delivers the Highest Performance with Less Maintenance. Our Hubs Are Constructed to Provide Outstanding Durability, And Quick Engagement Under High Load Capacity in The Most Severe Riding Conditions. Routine Maintenance Is Simple and Does Not Require Complicated Tools. Both Of the TH Series Rim Brake Hubs and Disc Brake Hubs Contain High-Quality 6pcs TPI Ceramic Bearings. TPI Ceramic Bearing Will Make Your Wheels Roll Faster Saving You Energy and Allow Faster Cruising Speeds. The Other Apparent Advantage of Ceramic Bearings Over Steel Is That Ceramic Is Harder, Resists Corrosion, And Lasts Longer in Everyday Use.

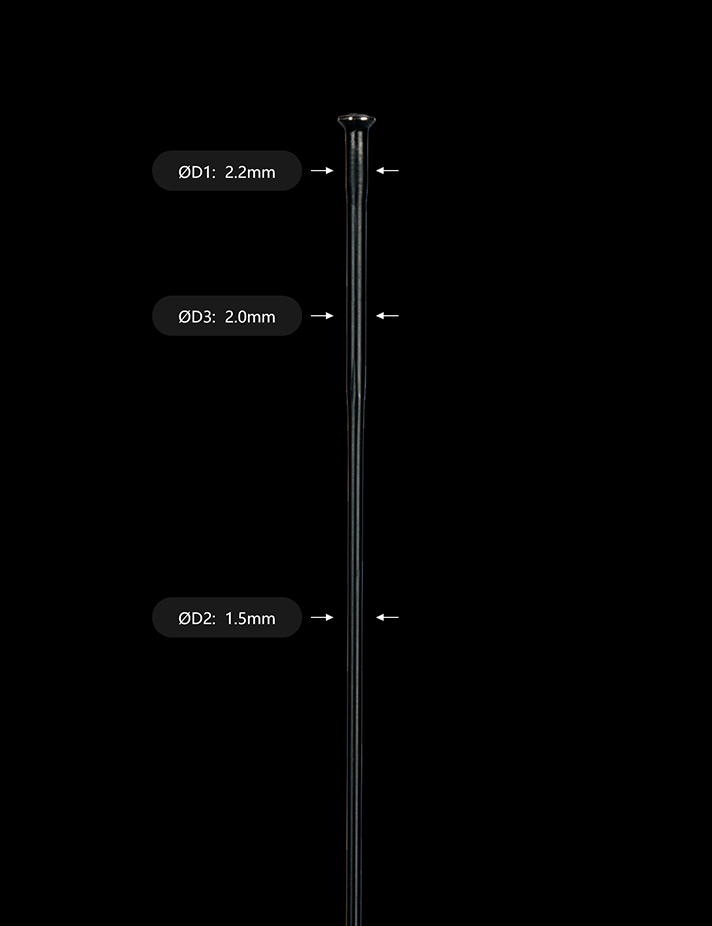

Valar TH Series Wheelsets Use Pillar PSR TB2015 Triple Butted Spokes Which Consist of T302+ Stainless Steel, And Pillar Cold Drawn Technology. Three Different Diameters Are Produced in One Spoke. The PSR Spoke Is Four Times Stronger Than the Standard Spokes in Extension Strength Test. One Piece PSR TB2015 Spoke Weight (260mm) Is 4.3g, Which Is Equivalent to One 260mmm SPAIM CX-Ray Spoke. Super Strong and Light! TH Series Wheels Use Pillar TG Aluminum Nipples, Designed to Attain Maximum Grip Without the Use of Adhesives. Due To Its Unique Design, The TG Nipple Will Lock Itself to The Spoke Threads as The Tension Is Increased. This Insures the Spoke & Nipple Will Not Come Loose During Riding.

Tubeless Compatible, All OROME VALAR Wheels Are Tubeless Compatible with Bead Seat Retention, Reinforced Carbon Hooks And 19mm (Rim Brake) And 22mm (Disc Brake) Width Internal Rim Beds. The 22mm Rim Width Ensures a Wider Range of Compatibility with Tubeless Tires from Most Manufacturers. Tubeless Systems Are Designed to Run at Lower Pressures Than Tube Systems Without Any Negative Effects. A Floor Pump and The Tubeless Rim Tape Are Required When You Run Tubeless Tires. We Left the Spoke Holes Unsealed to Make It Easier to Service and Replace the Spoke. If You’re Not Ready for Tubeless, VALAR Wheels Are Also Compatible with Traditional Clincher Tires and Inner Tubes.

No Matter Where You Go, The Reliable and Outstanding OROME VANLAR TH Wheels Will Provide You with A Unique Appearance and Riding Experience! Let The OROME VANLAR TH Be a Reliable Partner for Your Next Challenge, They’re Bound to Put a Smile on Your Face the Second Your Feet Touch the Pedals.


SPECIFICATION

FEATURES

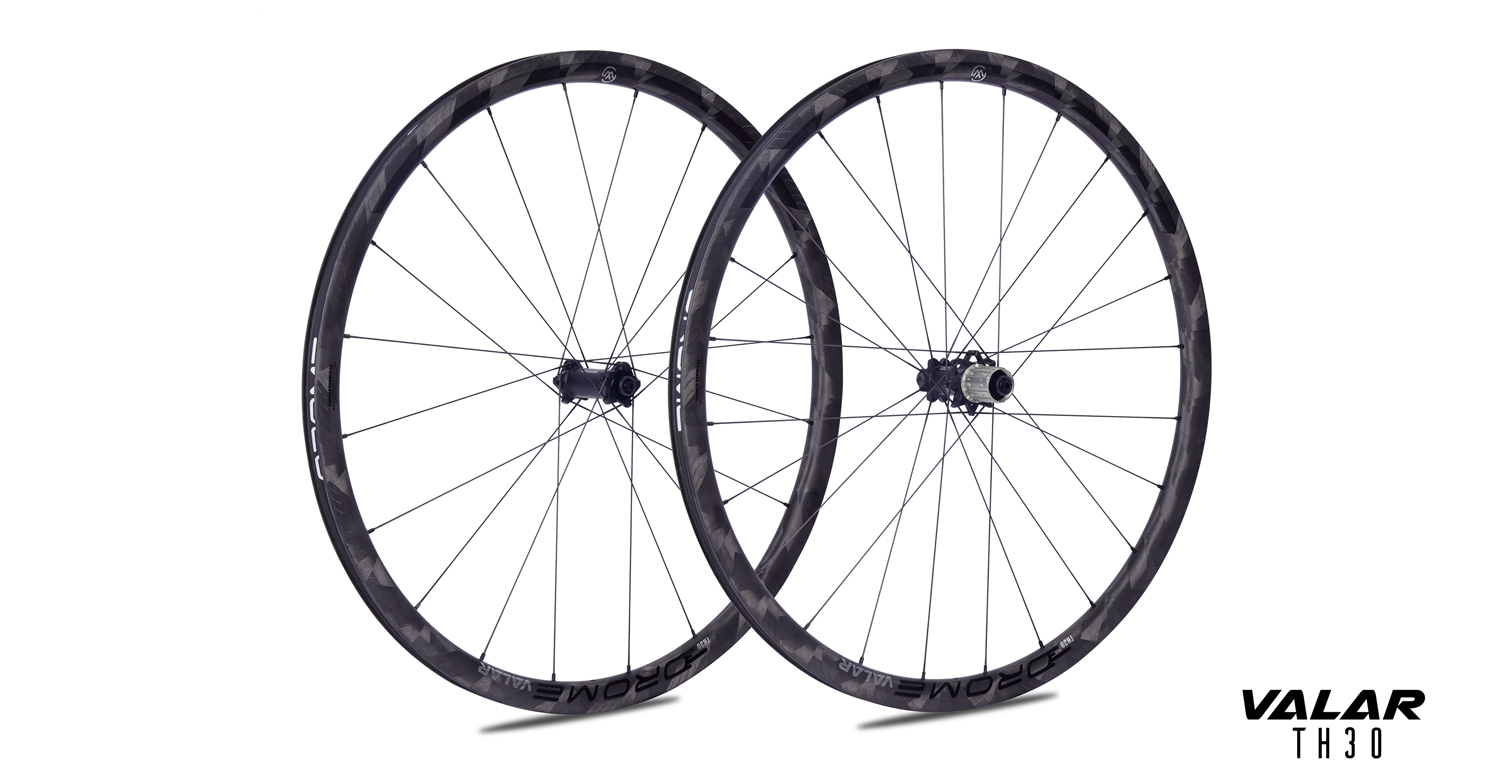

TH30(Rim brake wheelsets)

→Ultralight 30mm height Toray T800 carbon fiber rim
→Aerodynamic profile with 24k carbon surface
→19mm internal width and 26mm external width clincher rim
→Tubeless compatible (supports tubeless tires from 23-32mm)
→Zero-Coating Finished Technology
→Custom Ceramic Bearings CNC Hub With 52T Star Ratchet System
→Supplied with standard Shimano compatible 11s freewheel body
→SRAM XDR Freehub, Shimano 12S MS Freehub Also Available Upon Request
→Pillar PSR TB2015 Stainless Spokes
→Pillar TG Aluminum Nipples with Spacers
→High-temperature resistant grooved brake track

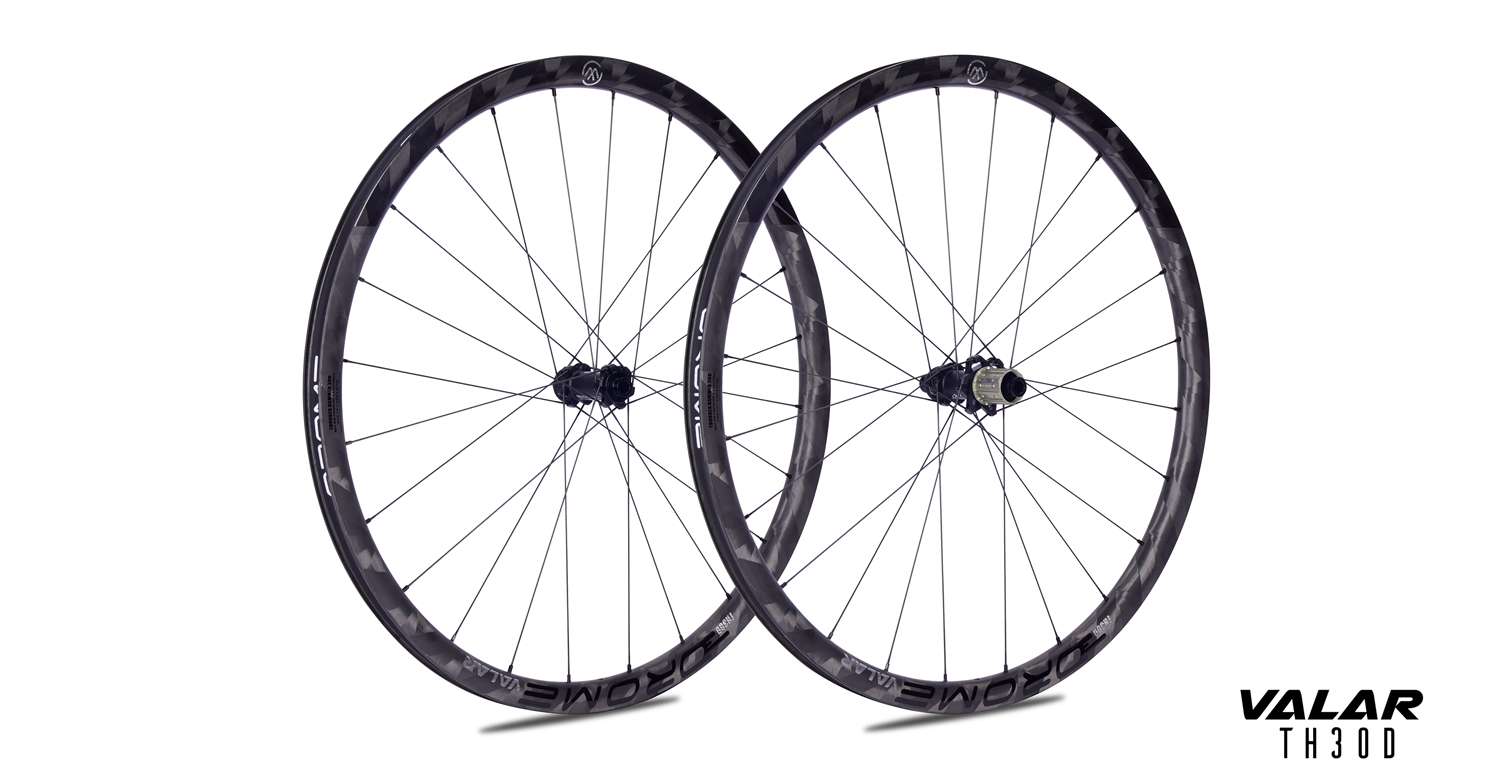

TH30D(Disc brake wheelsets)

→Ultralight 30mm height Toray T800 carbon fiber rim
→Aerodynamic profile with 24k carbon surface
→22mm internal width and 29mm external width clincher rim
→Tubeless compatible (supports tubeless tires from 23-45mm)
→Zero-Coating Finished Technology
→Custom Ceramic Bearings CNC Hub With 52T Star Ratchet System
→Supplied with standard Shimano compatible 11s freewheel body
→SRAM XDR Freehub, Shimano 12S MS Freehub Also Available Upon Request
→Pillar PSR TB2015 Stainless Spokes
→Pillar TG Aluminum Nipples with Spacers
→High-temperature resistant grooved brake track
→Compatible With Front:12x100 Rear:12x142 Thru-Axles.

VIDEO

Products Details

WARRANTY

Elves warranties all OROME Valar carbon wheel set from manufacturer’s defects in materials and workmanship specifications from a limited period of 2-years from the date of purchase!



This warranty is only for the original wheel set owner and is not transferable! Unless otherwise stated, the sole remedy under this warranty or any implied warranty is limited to the replacement of defective parts with those of equal or greater value at the sole discretion of Elves. Elves will not be responsible for any direct, incidental or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether based on contract, warranty, negligence, product liability or any other theory. This warranty does not cover normal wear and tear on parts in situations where there are no material defects. This warranty does not cover consumable components including brake pads, spokes, rim tapes, bearings, etc

Safety Tips


Bicycle maintenance requires special knowledge and tools. If in doubt, consult a reliable and experienced bicycle mechanic. You need to regularly check the bicycle and wheels, and make some replacements if necessary to maintain a high performance. Please consult the manufacturer for specific instructions on servicing other components.


  • The OROME Valar carbon clincher wheel set uses clincher or wired-on tires(only).
  • When installing or removing your clincher tires, do not use metal tire levers.
  • The maximum inflation on this wheel set is 120psi and maximum inflation for tubeless tire is 100psi; Overinflation may damage the rim.
  • Use only carbon-specific brake pads; Wrong brake pads could damage your carbon rims.
  • Modifying the wheel set (including hubs, spokes, nipples or rims) in any way will void the manufacturer‘s warranty and may be unsafe.
