OROME VALAR DT56&DT56D

ABOUT VALAR DT56 AND DT56D

DT56&DT56D

The Valar DT56 And DT56D Disc Wheelsets Are Efficient Lightweight Carbon Road Wheels That Bring Premium-Level Performance To All Riders, It’s A Pro-Level Mid-Profile Aero Road Wheels. Spin Up Quickly, Roll Fast, Better Power Transfer, Superior Braking Control, And Its Weight And Depth Make Them Perfect For Both Climbing And Long Rides.

Elves Frames With Valar DT Series Wheelsets Will Be A Great Weapon For You To Sprint To The Podium Or Alone Against The Clock!When More And More Riders All The World Are Riding Elves Frames, They Were Very Keen For A Pro-Level Wheelset To Match Their Beloved Elves Frames. So, Elves Engineers Designed The OROME Valar DT Series Wheelsets For Them: Ultralight 56mm Depth Full Carbon Rims, Dt Swiss 240s Ratchet Exp Hub And Sapim CX-Ray Spokes. It’s An Unbeatable And Exciting Combination And Will Bring Outstanding Performance At No Compromise!

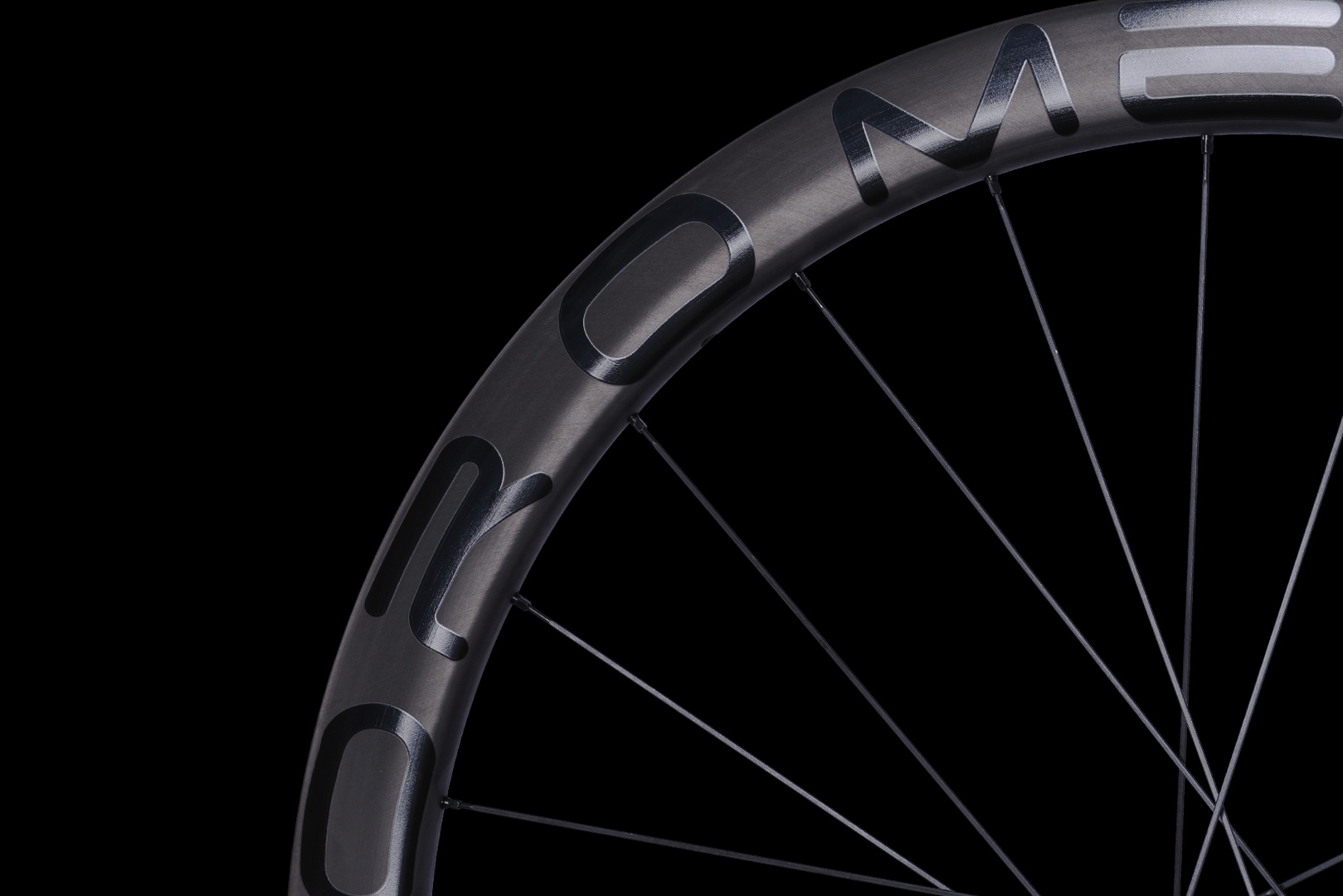

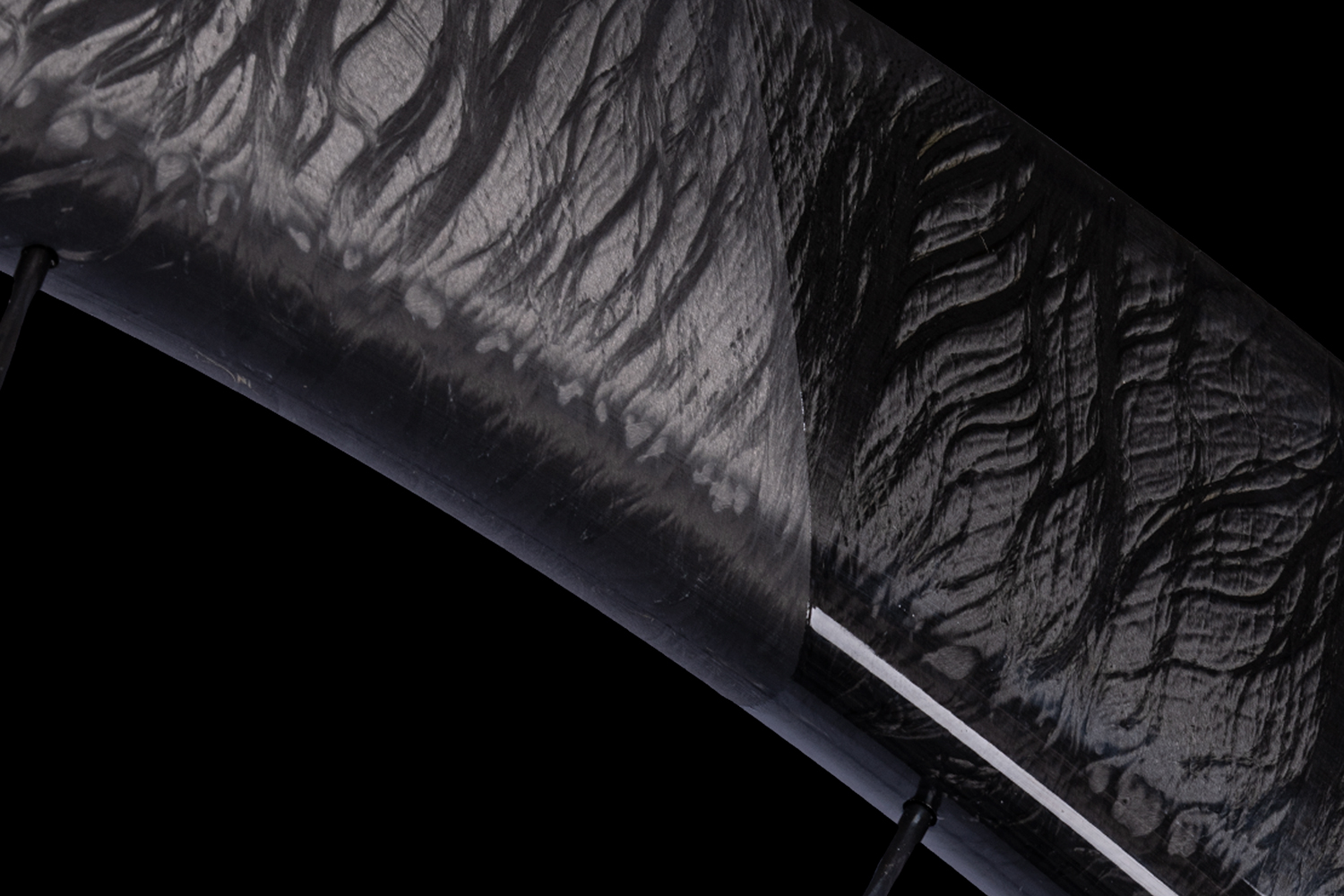

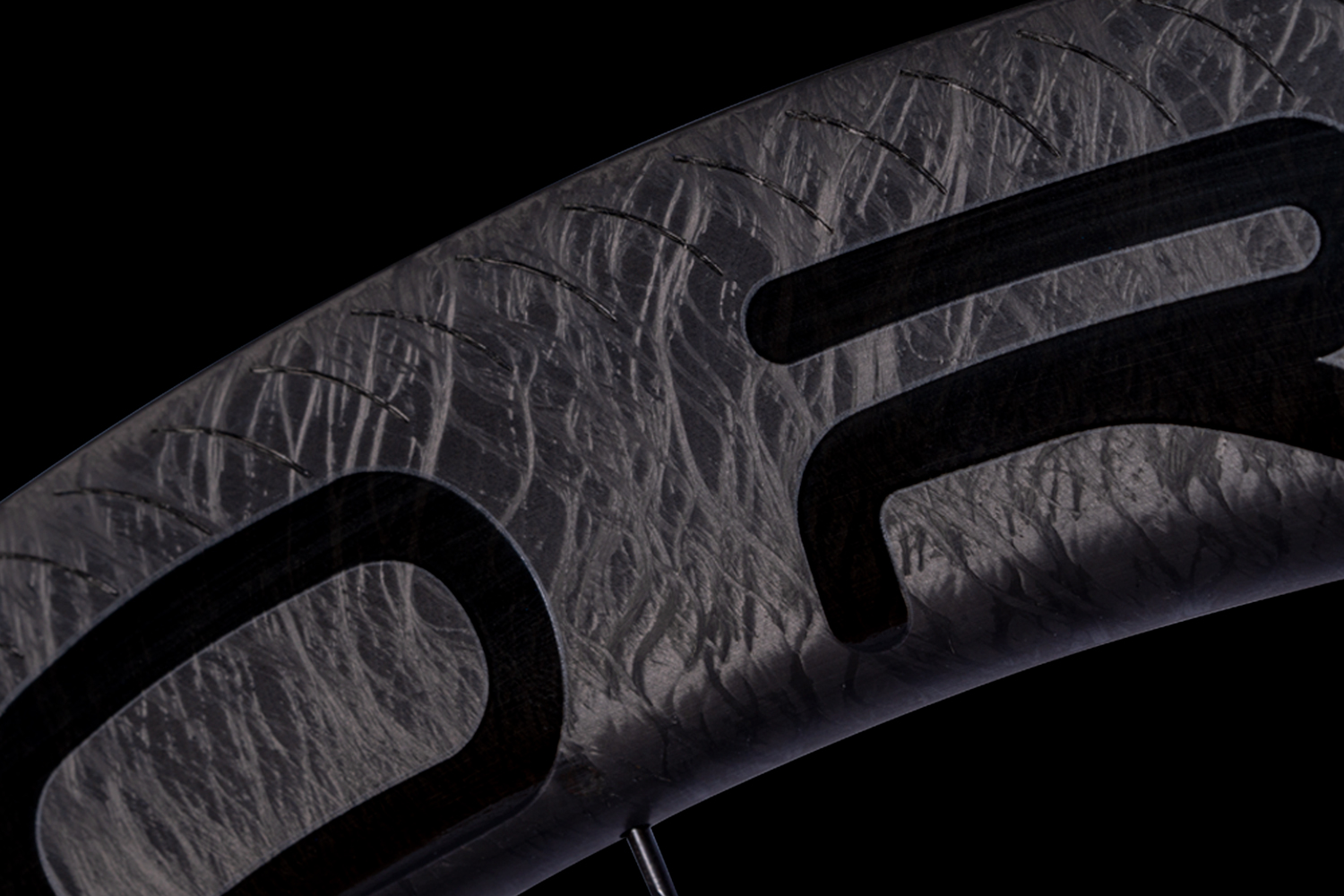

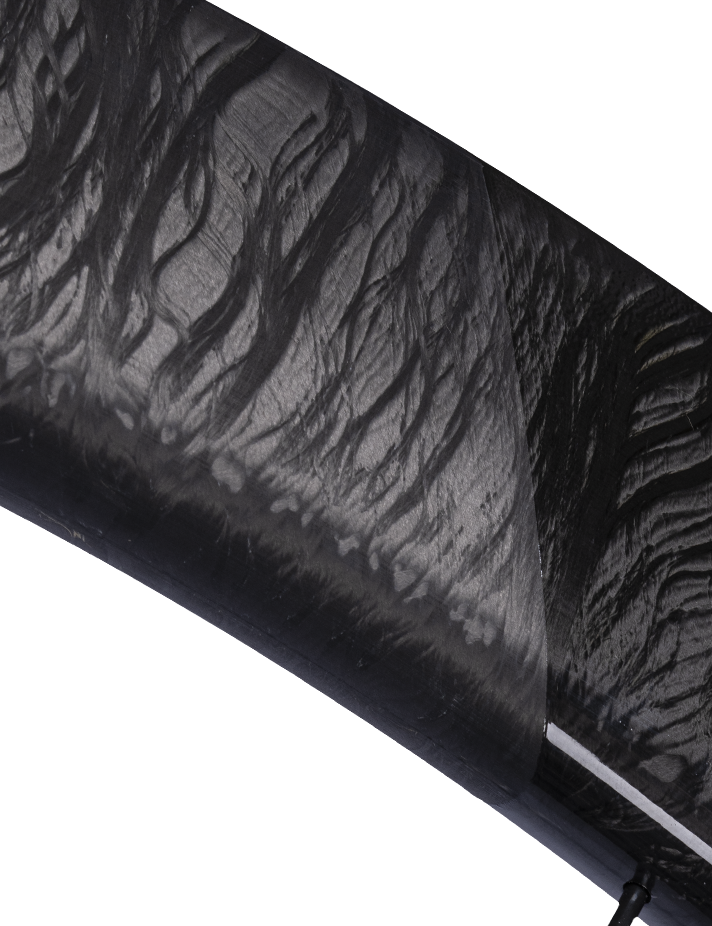

Valar DT56 And Valar DT56D Disc Version Rims Made By Toray T800 Carbon Fiber. Our Engineer Optimized The Rim Carbon Layup, They Designed The High Tensile Strength Carbon Fiber At The Most Crucial Points To Provide Rims Stiffness. They Use Thinner Prepregs For Better Control Over The Layup, Which Make The Same Wall Thickness But Come With More Layers, And Bring A Lighter Weight With Better Stiffness. Zero-Coating Design On Carbon Products Surface Is A Top Notch And Difficult Technology, Unquestionably It’s A Trend On High-End Carbon Products! Actually, Just Only A Few Factories Have Mastered The Technology!Zero-Coating Technology Shows The Fine Fiber Structure Of The Carbon Rim Giving Each Wheel An Individual Touch And Reducing The Rim Weight; Valar Dt Series Rims Made By Zero-Coating Technology On Marbling Surface, It Saves About 15g Per Rim, But We Paint Clear Coating On 25% Surface, And The Rest Of Area Keep Marbling Carbon Fiber Same As It Came Out Of The Mold, We Think This Design Looks More Beautiful And Different.

All OROME Valar Rim Braking Wheels Bring Textured Brake Surface Design, Combined With Our High-Temperature Resistant Resin System, Which Enhances The Rim’s Overall Durability And Braking Performance! The Grooved Track Helps Move Water & Debris More Quickly Out Of The Way Between The Brake Pads & Rim, And Also Provides Additional Edges That Also Add Friction Allowing The Pad To Better Grip The Braking Surface. The High-Temperature Resistant Resin Construction Ensures The Track Can Withstands Over 280°C, And Go With The Grooved Track Can Take Both Better Handle Extreme Temperatures And Better Dissipate Heat Build-Up Away From The Pads

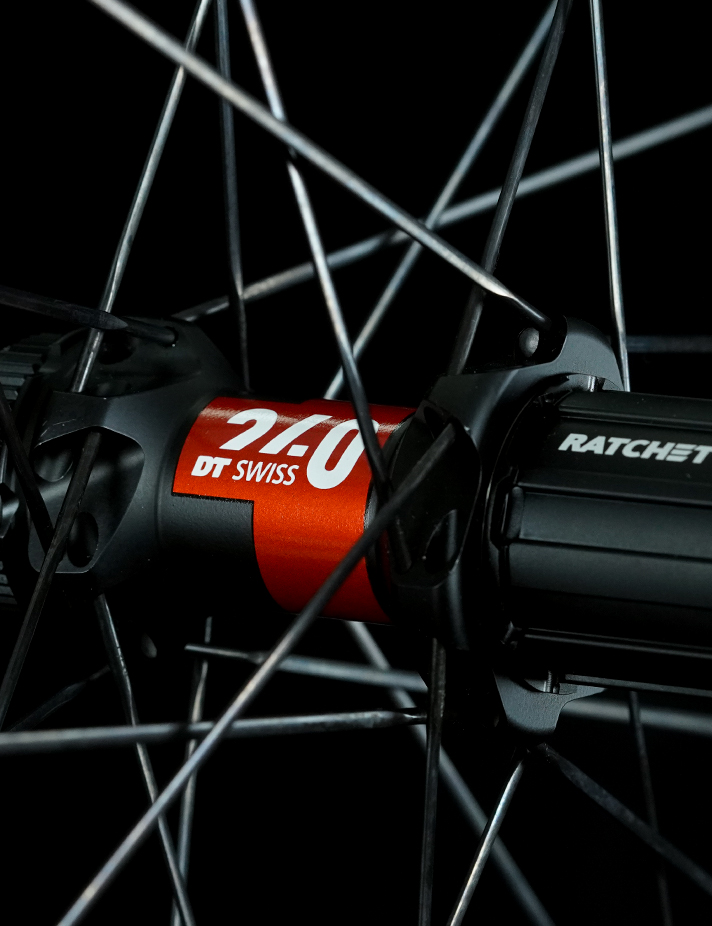

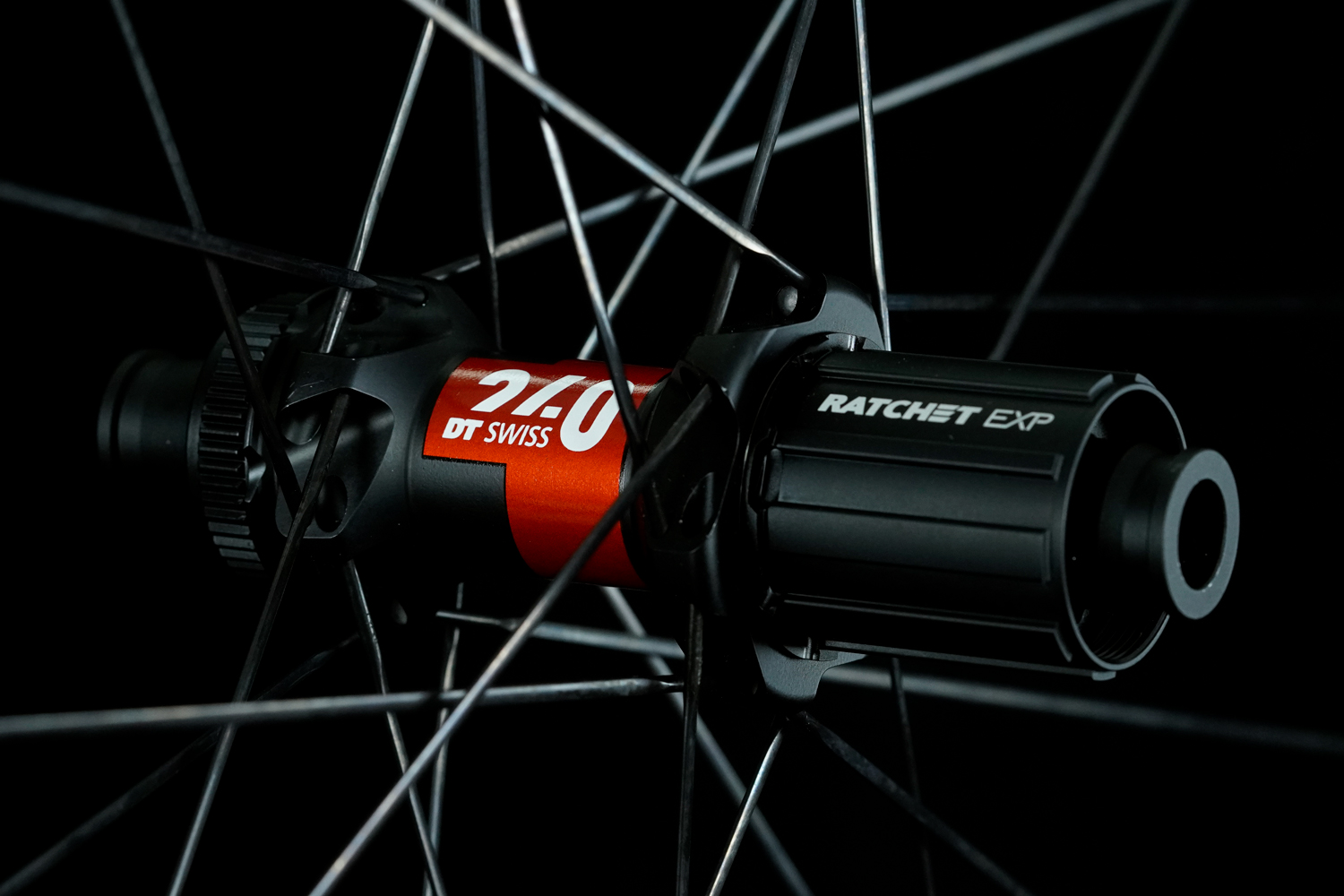

It’s Time To Talk About The Hubs And Spokes, We Developed The OROME VALAR DT Series Wheels Comes With DT Swiss Hubs And Sapim Spokes, The Two Brands Are The Leading Expert In Wheels Field. They Are Professional And Reliable! We Believe No One Would Reject Such Excellent Parts In Their Wheels! VALAR DT Series Assembled The Latest Generation Of The DT 240 Hub On Rim Brake Version And Disc Brake Version, The Latest 240s Ratchet EXP Freehub System Increases The Bearing Lifetime Thanks To The Increased Bearing Distance. The New Version Of The End Caps Simplifies The Tool-Free Disassembly And Makes Maintenance Easier. The Hollow-Machined Ratchets Transfer The Energy Invested Directly Into Acceleration Thanks To The 36 Teeth; The Spokes Of VALAR DT Series Are Sapim CX-Ray—The Best Aerodynamic Elliptic Spoke, Made Of Fatigue-Resistant 18/8 Stainless Steel, Almost As Light As Titanium, They Said The CX-Ray Still Receives One Of The Best Results In Fatigue Testing Of Any Spoke. Its Unique Strength And Flexibility Make The CX-Ray Suitable For A Top-Level Bicycle Wheels.

Tubeless Compatible, All Of OROME VALAR Wheels Are Tubeless Compatible With Bead Seat Retention, Reinforced Carbon Hooks And 19mm Width Internal Rim Bed Ensure A Wider Range Of Compatibility With Tubeless Tires From Most Manufacturers. Tubeless Systems Are Designed To Run At Lower Pressures Than Tube Systems Without Any Negative Effects. A Floor Pump And The Tubeless Rim Tape Are Needed For Our Wheels When You Install The Tubeless Tire, We Didn’t Seal The Spoke Holes Because Our Engineer Think It Will Be Easy To Replace The Spoke In Some Case. If You’re Not Ready For Tubeless, VALAR Wheels Are Also Compatible With Traditional Clincher Tires And Tubes.

No Matter Where You Go, The Reliable And Outstanding OROME VANLAR DT Wheelset Will Provide You With A Unique Appearance And Riding Experience! And It’s A Reliable Partner For Your Next Challenge And Is Bound To Put A Smile On Your Face The Second Your Feet Touch The Pedals.


SPECIFICATION

FEATURES

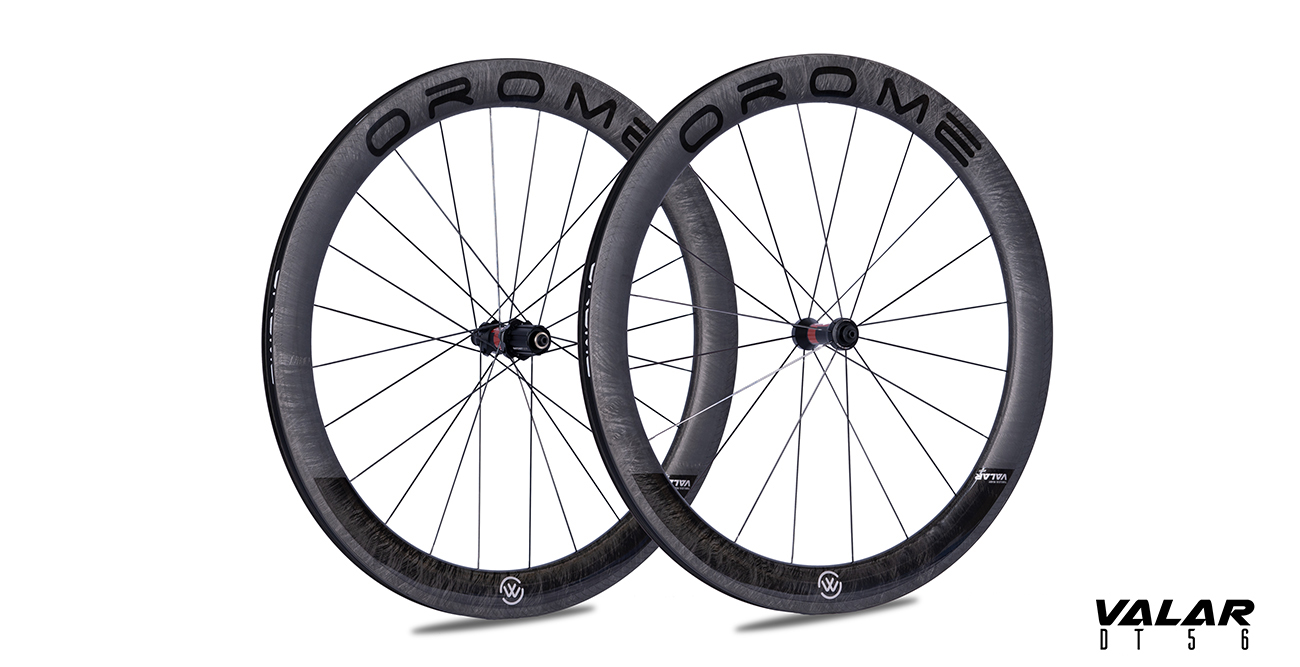

DT56(Rim brake wheelsets)

→Ultralight 56mm height Toray T800 carbon fiber rim
→Aerodynamic profile with marbling surface
→19mm internal width and 26mm external width clincher rim
→Tubeless compatible (supports tubeless tires from 23-56mm)
→Zero-Coating Finished Technology
→DT Swiss 240S hub with Ratchet EXP structure
→Supplied with standard Shimano compatible 11s freewheel body
→Sapim CX-Ray aerodynamic stainless spokes
→Sapim Alloy hidden locking nipples with spacers
→HIGH-TEMPERATURE RESISTANT grooved brake track

DT56D(Disc brake wheelsets)

→Ultralight 56mm height Toray T800 carbon fiber rim
→Aerodynamic profile with marbling surface
→19mm internal width and 26mm external width clincher rim
→Tubeless compatible (supports tubeless tires from 23-56mm)
→Zero-Coating Finished Technology
→DT Swiss 240S centerlock disc hub with Ratchet EXP system
→Supplied with standard Shimano compatible 11s freewheel body
→Sapim CX-Ray aerodynamic stainless spokes
→Sapim alloy hidden locking nipples with spacers
→Compatible with Front:12x100 Rear:12x142 thru-axles

VIDEO

Products Details

WARRANTY

Elves warranties all OROME Valar carbon wheel set from manufacturer’s defects in materials and workmanship specifications from a limited period of 2-years from the date of purchase!



This warranty is only for the original wheel set owner and is not transferable! Unless otherwise stated, the sole remedy under this warranty or any implied warranty is limited to the replacement of defective parts with those of equal or greater value at the sole discretion of Elves. Elves will not be responsible for any direct, incidental or consequential damages, including, without limitation, damages for personal injury, property damage, or economic losses, whether based on contract, warranty, negligence, product liability or any other theory. This warranty does not cover normal wear and tear on parts in situations where there are no material defects. This warranty does not cover consumable components including brake pads, spokes, rim tapes, bearings, etc

Safety Tips

Bicycle maintenance requires special knowledge and tools. If in doubt, consult a reliable and experienced bicycle mechanic. You need to regularly check the bicycle and wheels, and make some replacements if necessary to maintain a high performance. Please consult the manufacturer for specific instructions on servicing other components.


  • The OROME Valar carbon clincher wheel set uses clincher or wired-on tires(only).
  • When installing or removing your clincher tires, do not use metal tire levers.

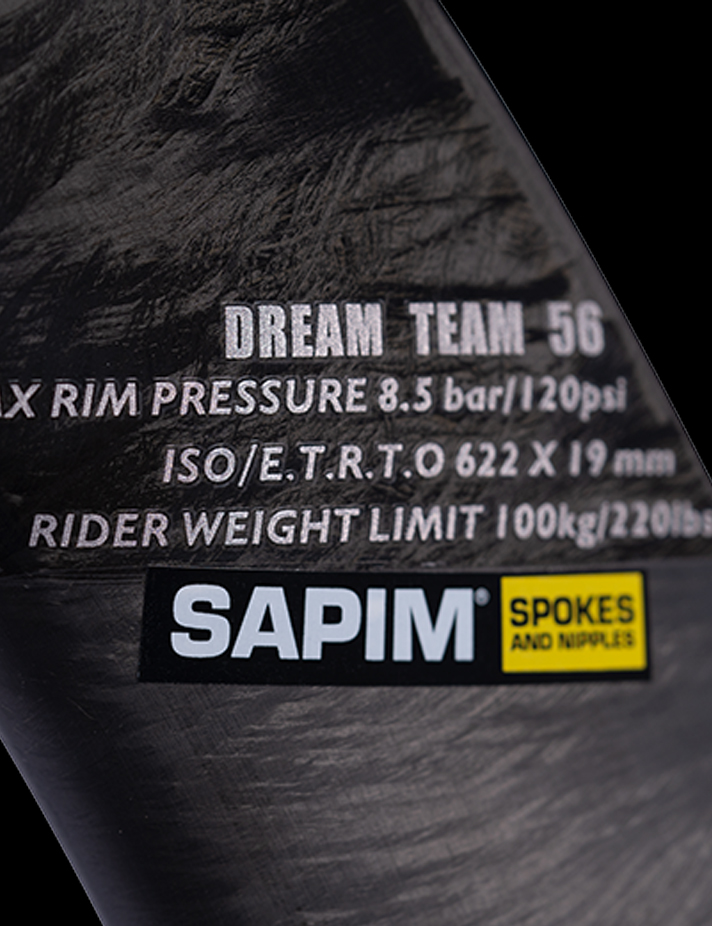

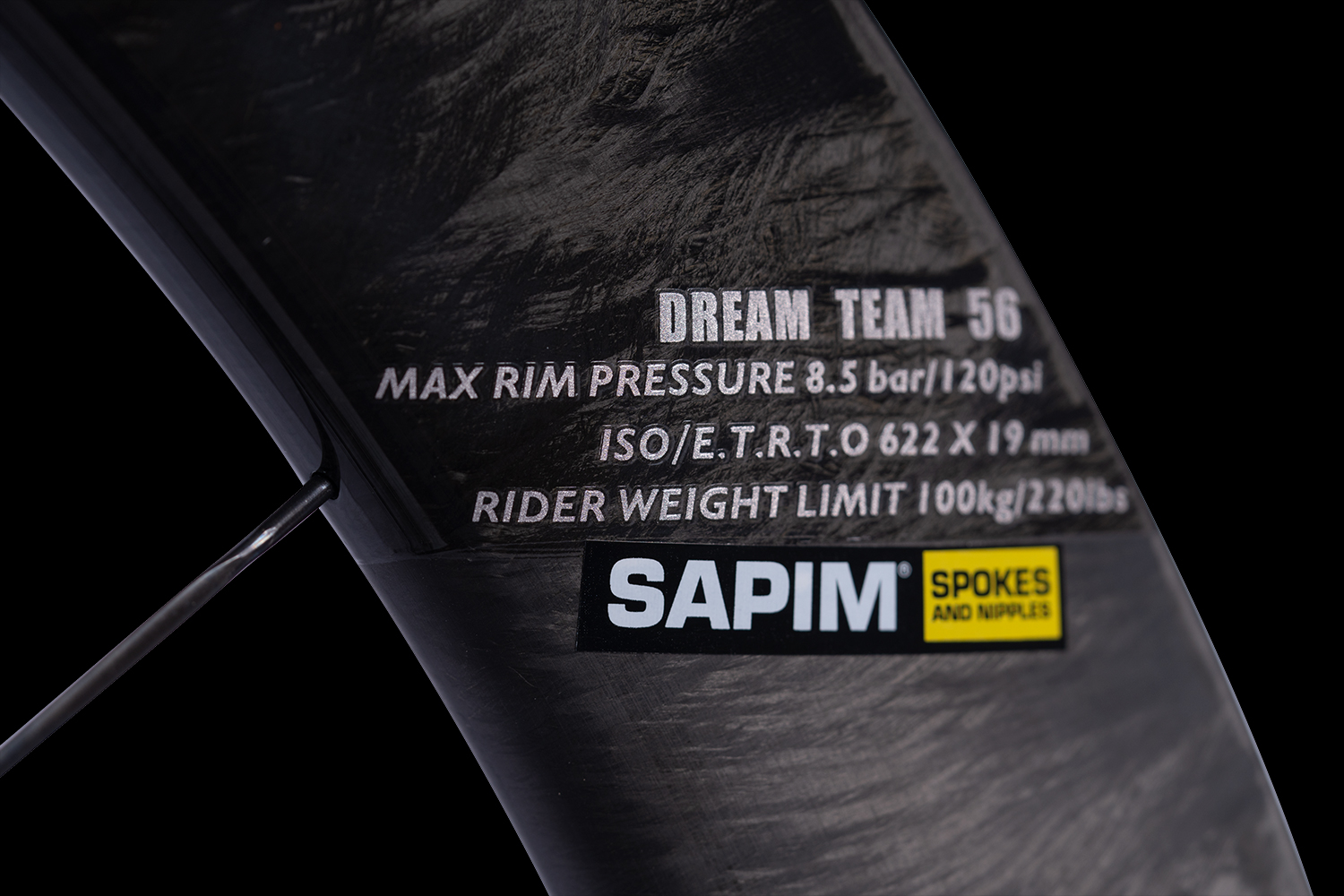

  • The maximum inflation on this wheel set is 120psi and maximum inflation for tubeless tire is 100psi; Overinflation may damage the rim.
  • Use only carbon-specific brake pads; Wrong brake pads could damage your carbon rims.
  • Modifying the wheel set (including hubs, spokes, nipples or rims) in any way will void the manufacturer‘s warranty and may be unsafe.
